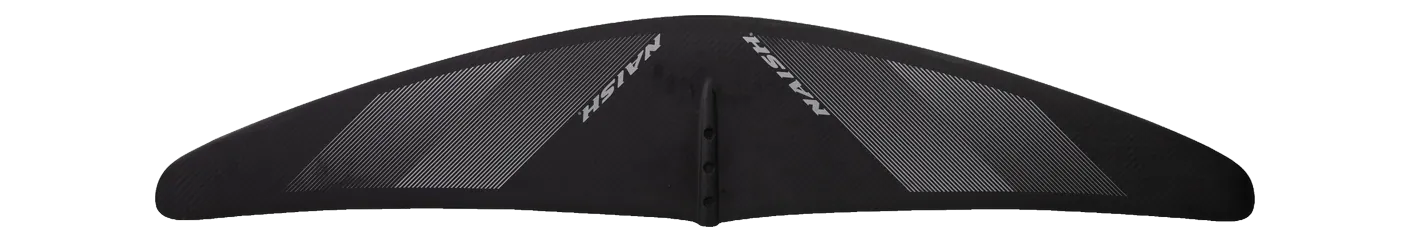

Naish Jet HA Front Wing 1640
- 1,640area, cm²
- 1,100span, mm
- 7.38aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Jet HA Area basis projected Brand’s category Glide / high aspect Disciplines wing, prone, sup, downwind, kite carbon/glass composite · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the AFS Evo Front Wing 1650, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Jet HA Front Wing runs 7 sizes, 640–1,840 cm², and changes proportion as it grows: aspect ratio runs 6.8 at one end of the range to 10.2 at the other, so its sizes differ in shape as well as in area.
Its 1,100 mm span is 8% narrower than typical for the area — the median across the 79 current wings within 10% of its size is 1,191 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Evo Front Wing 1650 | 1,650 | +0.6% | 7.50 | +1.6% | 1,110 | Mid-low aspect |
| Duotone | Free 2.0 1600 | 1,600 | -2.4% | 7.00 | -5.1% | 1,060 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1700 | 1,700 | +3.7% | 7.20 | -2.4% | 1,100 | Mid-low aspect |
Specifications
| Family | Jet HA |
|---|---|
| Size | Jet HA 1640 |
| Area, cm² | 1,640 |
| Area basis | projected |
| Span, mm | 1,100 |
| Chord, mm | — |
| Aspect ratio | 7.38 |
| Band | Mid-low aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, sup, downwind, kite |
| Construction | carbon/glass composite |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
