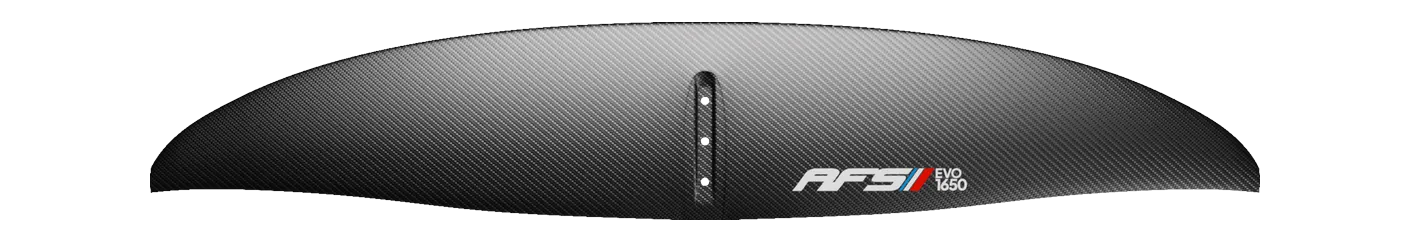

AFS Evo Front Wing 1650
- 1,650area, cm²
- 1,110span, mm
- 7.50aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family EVO Chord 195 mm Brand’s category All-round / freeride Disciplines wing, sup HR Carbon / Corecell · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Jet HA Front Wing 1640, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Evo Front Wing runs 4 sizes, 950–1,650 cm²; aspect ratio moves 7.5–8.1 across the range.
Its 1,110 mm span is 7% narrower than typical for the area — the median across the 78 current wings within 10% of its size is 1,196 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Jet HA Front Wing 1640 | 1,640 | -0.6% | 7.38 | -1.6% | 1,100 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1700 | 1,700 | +3.0% | 7.20 | -4.0% | 1,100 | Mid-low aspect |
| Duotone | Free 2.0 1600 | 1,600 | -3.0% | 7.00 | -6.7% | 1,060 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1600 | 1,600 | -3.0% | 8.00 | +6.7% | 1,130 | Mid-low aspect |
Specifications
| Family | EVO |
|---|---|
| Size | 1650 |
| Area, cm² | 1,650 |
| Area basis | unknown |
| Span, mm | 1,110 |
| Chord, mm | 195 |
| Aspect ratio | 7.50 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, sup |
| Construction | HR Carbon / Corecell |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
