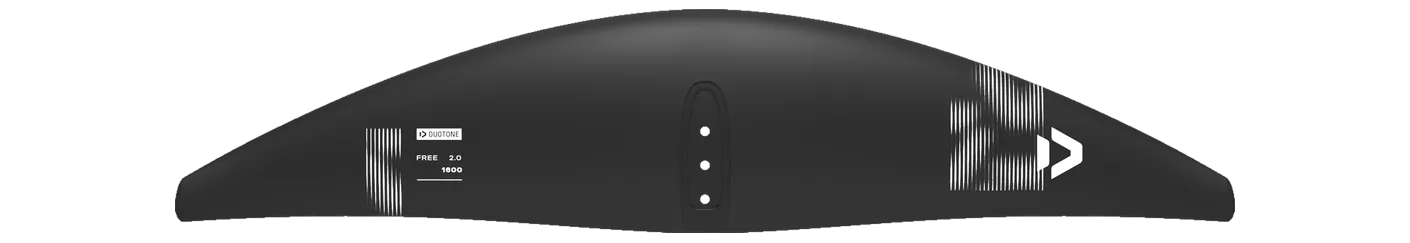

Duotone Free 2.0 1600
- 1,600area, cm²
- 1,060span, mm
- 7.00aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Free Brand’s category All-round / freeride Disciplines wing carbon/glass hybrid · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Jet HA Front Wing 1640, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Free 2.0 runs 3 sizes, 1,300–1,900 cm²; aspect ratio moves 6.8–7.2 across the range.
Its 1,060 mm span is 9% narrower than typical for the area — the median across the 77 current wings within 10% of its size is 1,160 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Jet HA Front Wing 1640 | 1,640 | +2.5% | 7.38 | +5.4% | 1,100 | Mid-low aspect |
| AFS | Evo Front Wing 1650 | 1,650 | +3.1% | 7.50 | +7.1% | 1,110 | Mid-low aspect |
Specifications
| Family | Free |
|---|---|
| Size | 1600 |
| Area, cm² | 1,600 |
| Area basis | unknown |
| Span, mm | 1,060 |
| Chord, mm | — |
| Aspect ratio | 7.00 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing |
| Construction | carbon/glass hybrid |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
