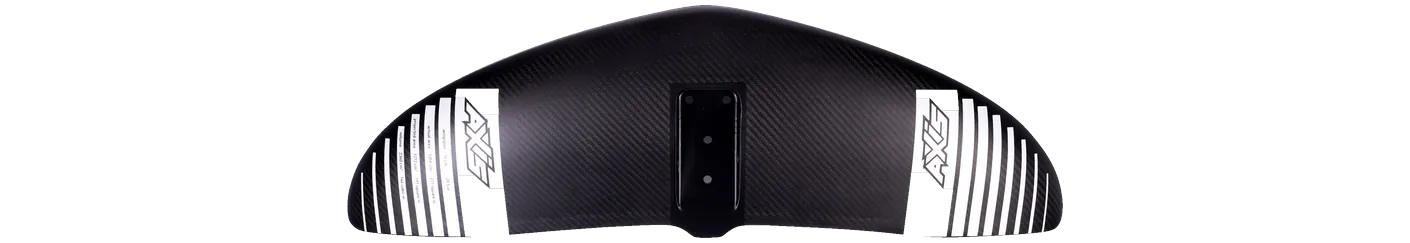

Axis S-Series Carbon Front Wing 750mm
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,359area, cm²
- 750span, mm
- 4.42aspect ratio
- Lowaspect · AR ≤ 6.0
Family S-Series Area basis flat Chord 220 mm Brand’s category Surf / carve Disciplines sup, prone, tow, wake, kite carbon · 2020-2023
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Slingshot One-Lock Kite 1255 (#2) is already over it. Select a numbered wing to draw it — up to three at a time.
The S-Series Carbon Front Wing has run 6 sizes, 1,120–2,051 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 4.4 at one end of the range to 6.8 at the other, so its sizes differ in shape as well as in area.
Its 750 mm span is 30% narrower than typical for the area — the median across the 92 current wings within 10% of its size is 1,070 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 2.3× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takuma | LOL ProFoil Front Wing 1300 | 1,300 | -4.3% | 4.80 | +8.6% | 790 | Low aspect |
| Slingshot | One-Lock Kite 1255 | 1,255 | -7.7% | 4.10 | -7.2% | 715 | Low aspect |
| Armstrong | CF V2 (Carving Freeride) CF1200 | 1,200 | -11.7% | 4.90 | +10.9% | 746 | Low aspect |
Specifications
| Family | S-Series |
|---|---|
| Size | 750mm |
| Area, cm² | 1,359 |
| Area basis | flat |
| Span, mm | 750 |
| Chord, mm | 220 |
| Aspect ratio | 4.42 |
| Band | Low aspect |
| Brand’s category | Surf / carve |
| Disciplines | sup, prone, tow, wake, kite |
| Construction | carbon |
| Model year | 2020-2023 |
| Source | manufacturer |
The brand publishes this aspect ratio, but its own span and area (span² ÷ area) give a figure 5–10% away. The published number is kept and marked.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
