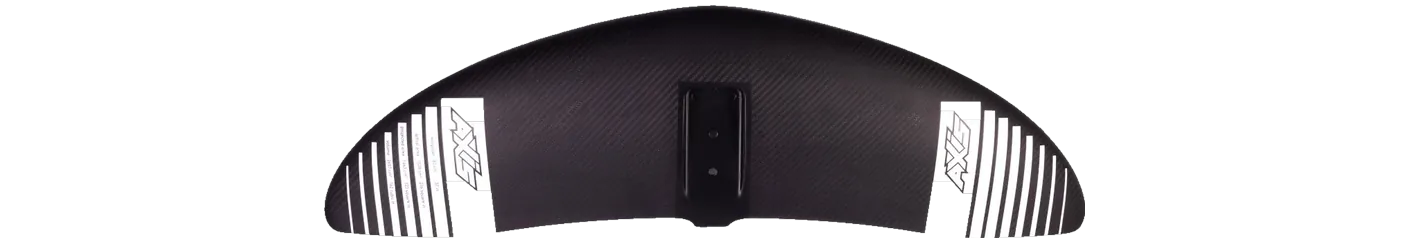

Axis S-Series Carbon Front Wing 920mm
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,852area, cm²
- 920span, mm
- 4.66aspect ratio
- Lowaspect · AR ≤ 6.0
Family S-Series Area basis flat Chord 250 mm Brand’s category Surf / carve Disciplines sup, downwind, prone, pump, wake, wing carbon · 2020-2023
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Armstrong S1 (Step 1) 1850 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The S-Series Carbon Front Wing has run 6 sizes, 1,120–2,051 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 4.4 at one end of the range to 6.8 at the other, so its sizes differ in shape as well as in area.
Its 920 mm span is 29% narrower than typical for the area — the median across the 62 current wings within 10% of its size is 1,295 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | GRAVITY Carbon 1800 | 1,800 | -2.8% | 4.60 | -1.3% | 900 | Low aspect |
| Armstrong | S1 (Step 1) 1850 | 1,850 | -0.1% | 5.00 | +7.3% | 965 | Low aspect |
| F-One | GRAVITY FCT 1800 | 1,800 | -2.8% | 5.00 | +7.3% | 950 | Low aspect |
| North | Sonar MA1850v2 | 1,850 | -0.1% | 5.00 | +7.3% | 960 | Low aspect |
Specifications
| Family | S-Series |
|---|---|
| Size | 920mm |
| Area, cm² | 1,852 |
| Area basis | flat |
| Span, mm | 920 |
| Chord, mm | 250 |
| Aspect ratio | 4.66 |
| Band | Low aspect |
| Brand’s category | Surf / carve |
| Disciplines | sup, downwind, prone, pump, wake, wing |
| Construction | carbon |
| Model year | 2020-2023 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
