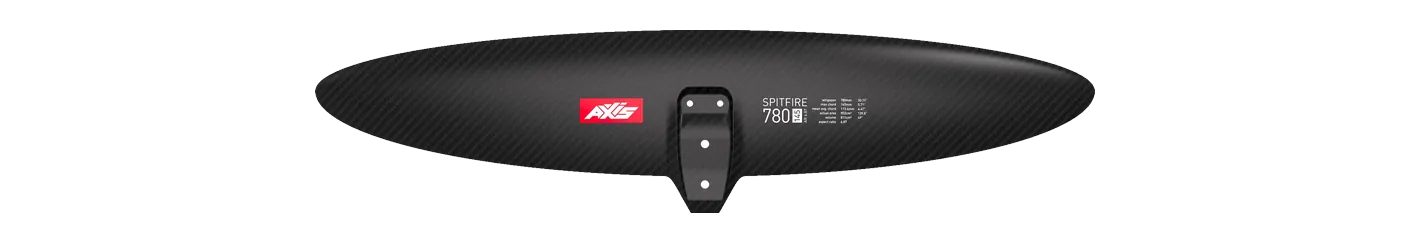

Axis Spitfire 780
- 902area, cm²
- 780span, mm
- 6.87aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Spitfire Area basis flat Chord 145 mm Brand’s category Surf / carve Disciplines prone carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Ascent V3 M, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Spitfire runs 10 sizes, 628–1,554 cm², and changes proportion as it grows: aspect ratio runs 6.1 at one end of the range to 9.1 at the other, so its sizes differ in shape as well as in area.
Its 780 mm span is 13% narrower than typical for the area — the median across the 126 current wings within 10% of its size is 899 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Ascent V3 M | 870 | -3.5% | 7.00 | +1.9% | 780 | Mid-low aspect |
| F-One | PHANTOM S Carbon PHANTOM-S 940 | 940 | +4.2% | 6.50 | -5.4% | 780 | Mid-low aspect |
Specifications
| Family | Spitfire |
|---|---|
| Size | Spitfire 780 |
| Area, cm² | 902 |
| Area basis | flat |
| Span, mm | 780 |
| Chord, mm | 145 |
| Aspect ratio | 6.87 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
