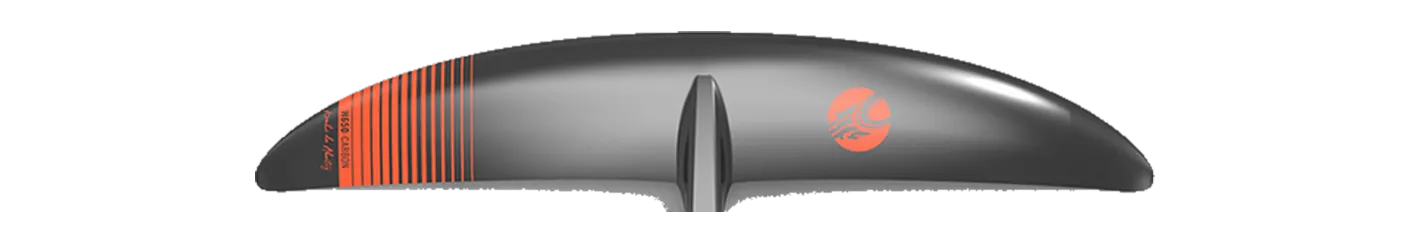

Cabrinha Fusion H-Series H1200
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,200area, cm²
- 900span, mm
- 6.70aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Fusion H-Series Chord 185 mm Brand’s category Glide / high aspect Disciplines wing, kite, prone carbon · 2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Takoon X-Glide V2 Front Wing 1250 (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 900 mm span is 11% narrower than typical for the area — the median across the 122 current wings within 10% of its size is 1,013 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar MA1200v2 | 1,200 | +0.0% | 6.40 | -4.5% | 875 | Mid-low aspect |
| North | Sonar SF1230 | 1,230 | +2.5% | 7.10 | +6.0% | 930 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1250 | 1,250 | +4.2% | 7.20 | +7.5% | 950 | Mid-low aspect |
Specifications
| Family | Fusion H-Series |
|---|---|
| Size | H1200 |
| Area, cm² | 1,200 |
| Area basis | unknown |
| Span, mm | 900 |
| Chord, mm | 185 |
| Aspect ratio | 6.70 |
| Band | Mid-low aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, kite, prone |
| Construction | carbon |
| Model year | 2024 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
