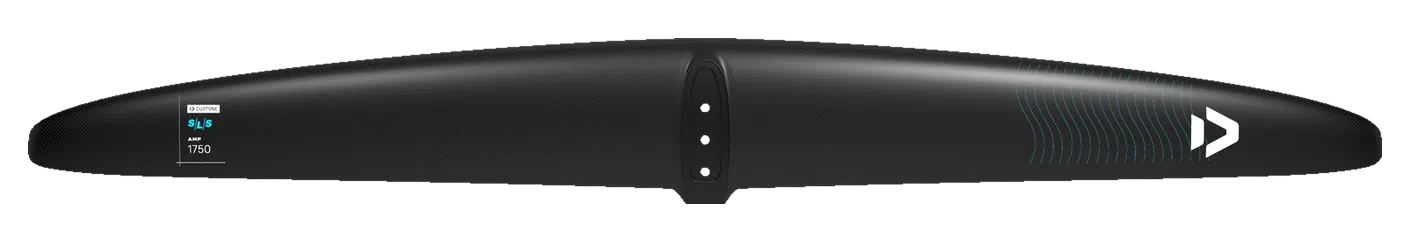

Duotone Amp SLS 1750
- 1,750area, cm²
- 1,433span, mm
- 11.70aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Amp Brand’s category Pump / dock Disciplines pump SLS · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Hyper Trail V3 Atmo 3XL, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 1,433 mm span is 19% wider than typical for the area — the median across the 67 current wings within 10% of its size is 1,202 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Hyper Trail V3 Atmo 3XL | 1,750 | +0.0% | 11.40 | -2.6% | 1,410 | High aspect |
| Axis | PNG V2 1400 | 1,786 | +2.1% | 10.99 | -6.1% | 1,400 | High aspect |
| GONG | Sirus V3 XL | 1,700 | -2.9% | 10.90 | -6.8% | 1,360 | High aspect |
| GONG | Sirus V3 Atmo XL (Perf / fiberglass) | 1,691 | -3.4% | 10.90 | -6.8% | 1,360 | High aspect |
Specifications
| Family | Amp |
|---|---|
| Size | 1750 |
| Area, cm² | 1,750 |
| Area basis | unknown |
| Span, mm | 1,433 |
| Chord, mm | — |
| Aspect ratio | 11.70 |
| Band | Very high aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | SLS |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
