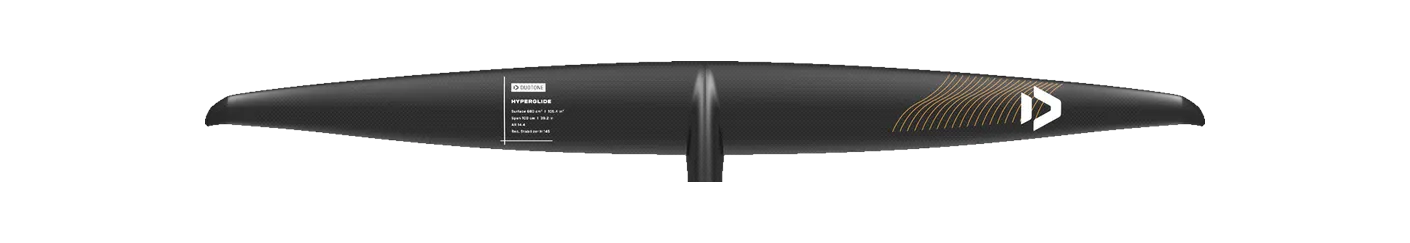

Duotone Hyperglide D/LAB 680 hydrofoil front wing: 680 cm², 1,000 mm span, aspect ratio 14.40, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Duotone's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | DWP (Downwind Performance) DWP685 | 685 | +0.7% | 13.55 | -5.9% | 960 | C5 Very high aspect |
| KT Foiling | Solus 650 Solus 650 | 650 | -4.4% | 14.00 | -2.8% | 955 | C5 Very high aspect |
| Unifoil | Quest 110 Quest 110 | 709 | +4.3% | 13.30 | -7.6% | 970 | C5 Very high aspect |
| Family | Hyperglide |
|---|---|
| Size | 680 |
| Area, cm² | 680 |
| Area basis | unknown |
| Span, mm | 1,000 |
| Chord, mm | — |
| Aspect ratio | 14.40 |
| Band | C5 Very high aspect |
| Brand files it under | Downwind |
| Disciplines | downwind |
| Construction | D/LAB |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Duotone on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
