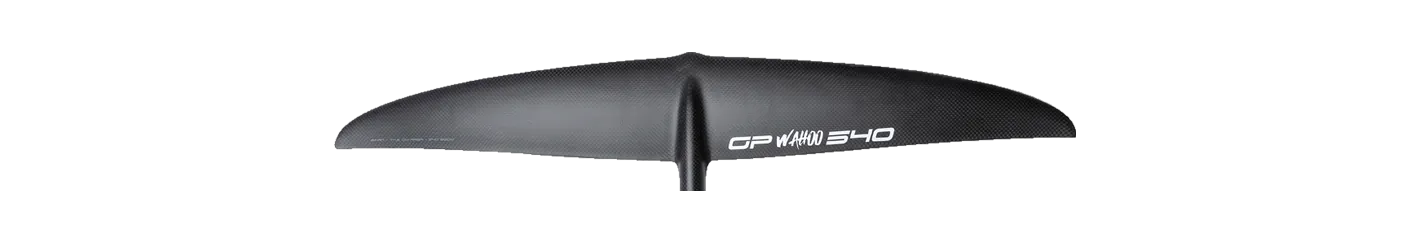

F4 Foils GP Wahoo TE 540

540area, cm²
742span, mm
10.20aspect ratio
Highaspect · AR 9.5 – 11.5

Family GP Wahoo TE Brand’s category Race / freerace Disciplines wing, race High Modulus and UHM Prepreg Carbon (monobloc)

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Excalibur HA Front Wing 544, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

2GONG Ypra Race Micro V3 Atmo 540 cm²no outline4North Sonar HA550no outline6North Sonar SF530no outlineSpecs · table ↓

F4 Foils GP Wahoo TE 540 · 742 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Naish Excalibur HA Front Wing 544 · 745 mm

Its 742 mm span is 6% wider than typical for the area — the median across the 57 current wings within 10% of its size is 700 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the F4 Foils GP Wahoo TE 540, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Naish	Excalibur HA Front Wing 544	544	+0.7%	10.20	+0.0%	745	High aspect
GONG	Ypra Race Micro V3 Atmo 540 cm²	540	+0.0%	10.40	+2.0%	749	High aspect
GONG	Ypra Race V3 540 cm²	540	+0.0%	9.90	-2.9%	730	High aspect
North	Sonar HA550	550	+1.9%	10.00	-2.0%	740	High aspect
Takoon	Flash Front Wing 530	530	-1.9%	9.80	-3.9%	720	High aspect
North	Sonar SF530	530	-1.9%	10.60	+3.9%	750	High aspect
AFS	Pure Race 560	560	+3.7%	10.00	-2.0%	750	High aspect
Naish	Mach-2 Front Wing 560	560	+3.7%	10.04	-1.6%	750	High aspect
Cabrinha	Fusion H-Series MkII H550	550	+1.9%	9.52	-6.7%	690	High aspect

Specifications

Every figure is F4 Foils's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	GP Wahoo TE
Size	540
Area, cm²	540
Area basis	unknown
Span, mm	742
Chord, mm	—
Aspect ratio	10.20
Band	High aspect
Brand’s category	Race / freerace
Disciplines	wing, race
Construction	High Modulus and UHM Prepreg Carbon (monobloc)
Model year	—
Source	manufacturer · read 2026-09-30

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
