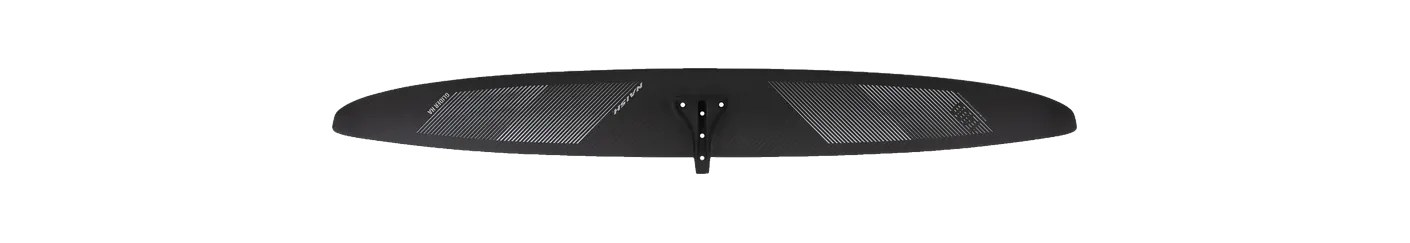

Naish Excalibur HA Front Wing 544
- 544area, cm²
- 745span, mm
- 10.20aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Excalibur Area basis projected Brand’s category Glide / high aspect Disciplines downwind, wing, prone, sup HM carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG Ypra Race V3 540 cm² (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Excalibur HA Front Wing runs 5 sizes, 544–1,344 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 745 mm span is 6% wider than typical for the area — the median across the 53 current wings within 10% of its size is 700 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar HA550 | 550 | +1.1% | 10.00 | -2.0% | 740 | High aspect |
| GONG | Ypra Race Micro V3 Atmo 540 cm² | 540 | -0.7% | 10.40 | +2.0% | 749 | High aspect |
| GONG | Ypra Race V3 540 cm² | 540 | -0.7% | 9.90 | -2.9% | 730 | High aspect |
| North | Sonar SF530 | 530 | -2.6% | 10.60 | +3.9% | 750 | High aspect |
| Takoon | Flash Front Wing 530 | 530 | -2.6% | 9.80 | -3.9% | 720 | High aspect |
| AFS | Pure Race 560 | 560 | +2.9% | 10.00 | -2.0% | 750 | High aspect |
| Cabrinha | Fusion H-Series MkII H550 | 550 | +1.1% | 9.52 | -6.7% | 690 | High aspect |
| KT Foiling | Atlas 570 | 570 | +4.8% | 10.50 | +2.9% | 775 | High aspect |
Specifications
| Family | Excalibur |
|---|---|
| Size | Excalibur 544 |
| Area, cm² | 544 |
| Area basis | projected |
| Span, mm | 745 |
| Chord, mm | — |
| Aspect ratio | 10.20 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | downwind, wing, prone, sup |
| Construction | HM carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
