GONG Sirus V3 XXL
- 2,000area, cm²
- 1,560span, mm
- 12.50aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Sirus Area basis projected Chord 170 mm Brand’s category Pump / dock Disciplines pump, sup, prone, downwind, wing, kite Team / Carbon HM · 2025

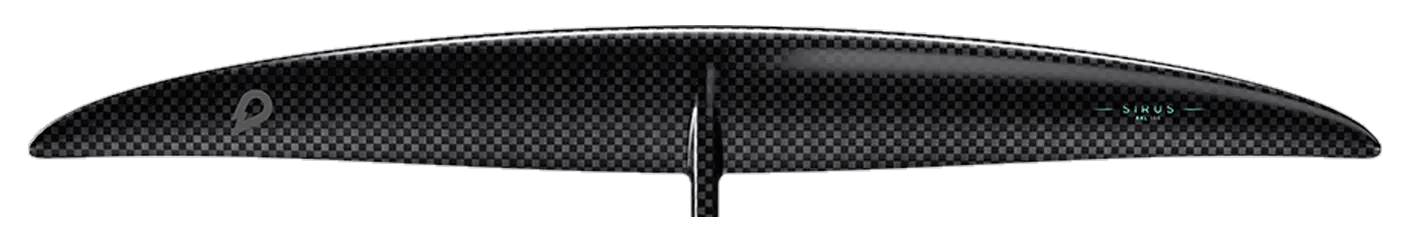

The GONG Sirus V3 XXL’s planform, traced from GONG’s own plan-view photograph.
The Sirus V3 runs 5 sizes, 1,450–3,100 cm², and changes proportion as it grows: aspect ratio runs 9.3 at one end of the range to 20.1 at the other, so its sizes differ in shape as well as in area.
Its 1,560 mm span is 20% wider than typical for the area — the median across the 50 current wings within 10% of its size is 1,295 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | Pump Pro Front Wing 1950 | 1,950 | -2.5% | 13.00 | +4.0% | 1,590 | Very high aspect |
Specifications
| Family | Sirus |
|---|---|
| Size | XXL |
| Area, cm² | 2,000 |
| Area basis | projected |
| Span, mm | 1,560 |
| Chord, mm | 170 |
| Aspect ratio | 12.50 |
| Band | Very high aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump, sup, prone, downwind, wing, kite |
| Construction | Team / Carbon HM |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
