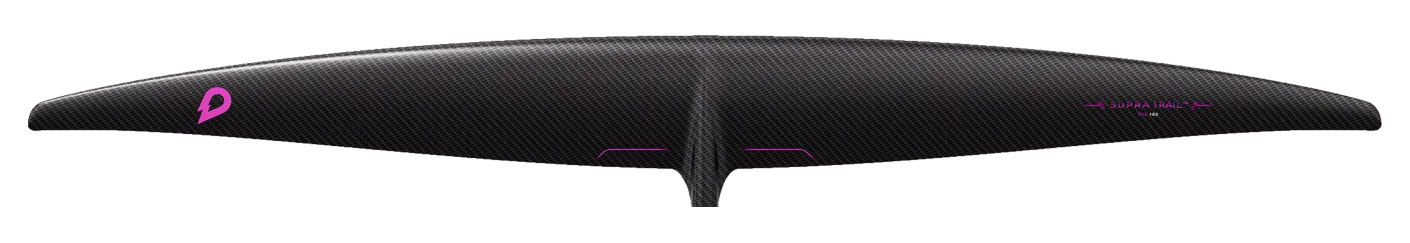

GONG Supra Trail V3 Atmo 3XL
- 1,750area, cm²
- 1,600span, mm
- 14.60aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Trail Chord 158 mm Brand’s category Pump / dock Disciplines pump Pro Team / 3K Texalium clear carbon prepreg · 2026
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Duotone Amp 2.0 SLS 1800 (#2) is already over it. Select a numbered wing to draw it — up to three at a time.
The Supra Trail V3 Atmo runs 5 sizes, 1,250–2,250 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,600 mm span is 33% wider than typical for the area — the median across the 67 current wings within 10% of its size is 1,202 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 2.1× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | Pump Pro Front Wing 1750 | 1,750 | +0.0% | 13.00 | -11.0% | 1,510 | Very high aspect |
| Duotone | Amp 2.0 SLS 1800 | 1,800 | +2.9% | 12.20 | -16.4% | 1,480 | Very high aspect |
| Axis | ART PRO 1401 | 1,647 | -5.9% | 12.17 | -16.6% | 1,401 | Very high aspect |
Specifications
| Family | Trail |
|---|---|
| Size | 3XL |
| Area, cm² | 1,750 |
| Area basis | unknown |
| Span, mm | 1,600 |
| Chord, mm | 158 |
| Aspect ratio | 14.60 |
| Band | Very high aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
