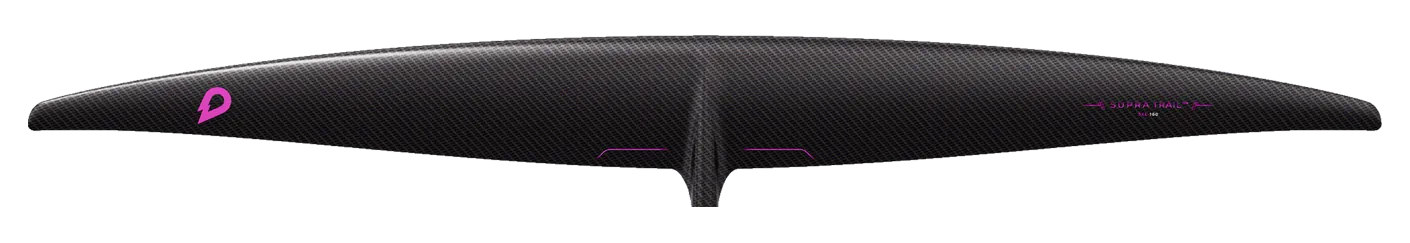

GONG Supra Trail V3 Atmo 5XL

2,250area, cm²
1,810span, mm
14.60aspect ratio
Very highaspect · AR 11.5 – 15.0

Family Trail Chord 179 mm Brand’s category Pump / dock Disciplines pump Pro Team / 3K Texalium clear carbon prepreg · 2026

Drawn to scale · the nearest wings

true relative scale

No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Takoon Pump Pro Front Wing 2300 (#2) is already over it. Select a numbered wing to draw it — up to three at a time.

1Code Foils Kanga Series Front Wing 2220no outlineSpecs · table ↓

GONG Supra Trail V3 Atmo 5XL · 1,810 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Takoon Pump Pro Front Wing 2300 · 1,735 mm

The Supra Trail V3 Atmo runs 5 sizes, 1,250–2,250 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,810 mm span is 34% wider than typical for the area — the median across the 28 current wings within 10% of its size is 1,355 mm.

Closest wings from other brands

No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.

The nearest current wings

None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 1.6× the tolerance.

The current wings from other brands nearest the GONG Supra Trail V3 Atmo 5XL, closest first. None is within the ±5% area and ±8% aspect-ratio tolerances used across this site.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Code Foils	Kanga Series Front Wing 2220	2,220	-1.3%	13.00	-11.0%	1,700	Very high aspect
Takoon	Pump Pro Front Wing 2300	2,300	+2.2%	13.00	-11.0%	1,735	Very high aspect
Sabfoil	Leviathan 1750	2,400	+6.7%	12.70	-13.0%	1,750	Very high aspect

Specifications

Every figure is GONG's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Trail
Size	5XL
Area, cm²	2,250
Area basis	unknown
Span, mm	1,810
Chord, mm	179
Aspect ratio	14.60
Band	Very high aspect
Brand’s category	Pump / dock
Disciplines	pump
Construction	Pro Team / 3K Texalium clear carbon prepreg
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
