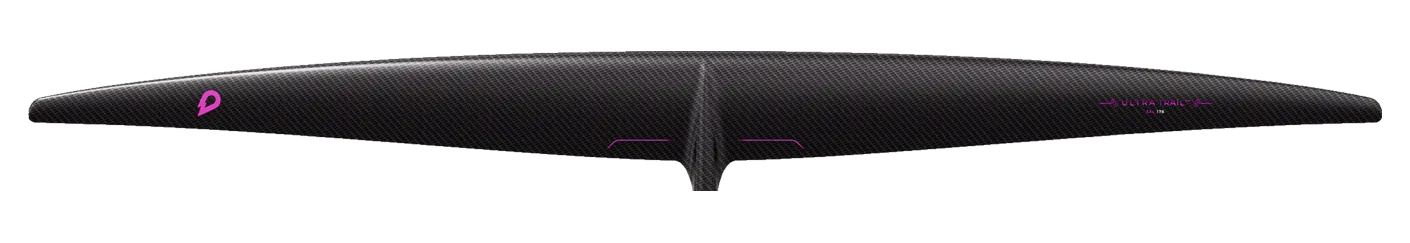

GONG Ultra Trail V3 Atmo XXL

1,500area, cm²
1,630span, mm
17.70aspect ratio
Ultra highaspect · AR > 15.0

Family Trail Chord 133 mm Brand’s category Pump / dock Disciplines pump Pro Team / 3K Texalium clear carbon prepreg · 2026

Drawn to scale · the nearest wings

true relative scale

No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Takoon Pump Extreme Front Wing 1400 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.

Specs · table ↓

GONG Ultra Trail V3 Atmo XXL · 1,630 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Takoon Pump Extreme Front Wing 1400 · 1,570 mm

The Ultra Trail V3 Atmo runs 5 sizes, 1,250–2,250 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,630 mm span is 47% wider than typical for the area — the median across the 81 current wings within 10% of its size is 1,110 mm.

Closest wings from other brands

No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.

The nearest current wings

None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 1.7× the tolerance.

The current wings from other brands nearest the GONG Ultra Trail V3 Atmo XXL, closest first. None is within the ±5% area and ±8% aspect-ratio tolerances used across this site.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Takoon	Pump Extreme Front Wing 1400	1,400	-6.7%	17.60	-0.6%	1,570	Ultra high aspect
Takoon	Pump Extreme Front Wing 1600	1,600	+6.7%	18.70	+5.6%	1,730	Ultra high aspect
Axis	Fireball ULTRA 1750	1,525	+1.7%	20.12	+13.7%	1,750	Ultra high aspect

Specifications

Every figure is GONG's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Trail
Size	XXL
Area, cm²	1,500
Area basis	unknown
Span, mm	1,630
Chord, mm	133
Aspect ratio	17.70
Band	Ultra high aspect
Brand’s category	Pump / dock
Disciplines	pump
Construction	Pro Team / 3K Texalium clear carbon prepreg
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
