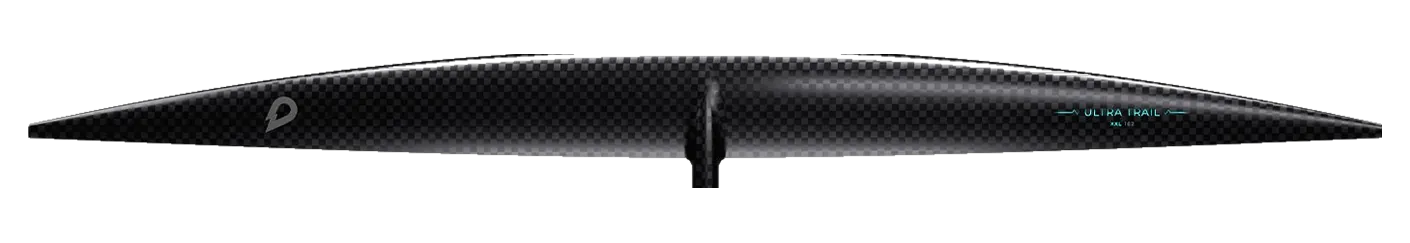

GONG Ultra Trail V3 XXL
- 1,500area, cm²
- 1,620span, mm
- 17.60aspect ratio
- Ultra highaspect · AR > 15.0
Family Trail Area basis projected Chord 132 mm Brand’s category Pump / dock Disciplines pump Pro Team / Carbon HM · 2025
The Ultra Trail V3 runs 5 sizes, 1,000–2,000 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,620 mm span is 46% wider than typical for the area — the median across the 81 current wings within 10% of its size is 1,110 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 1.8× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | Pump Extreme Front Wing 1400 | 1,400 | -6.7% | 17.60 | +0.0% | 1,570 | Ultra high aspect |
| Takoon | Pump Extreme Front Wing 1600 | 1,600 | +6.7% | 18.70 | +6.2% | 1,730 | Ultra high aspect |
| Axis | Fireball ULTRA 1750 | 1,525 | +1.7% | 20.12 | +14.3% | 1,750 | Ultra high aspect |
Specifications
| Family | Trail |
|---|---|
| Size | XXL |
| Area, cm² | 1,500 |
| Area basis | projected |
| Span, mm | 1,620 |
| Chord, mm | 132 |
| Aspect ratio | 17.60 |
| Band | Ultra high aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Pro Team / Carbon HM |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
