GONG Veloce DW V3 Atmo XL

1,200area, cm²
1,300span, mm
14.10aspect ratio
Very highaspect · AR 11.5 – 15.0

Family Veloce Chord 128 mm Brand’s category Downwind Disciplines downwind, wing, parawing Pro Team / 3K Texalium clear carbon prepreg · 2026

Drawn to scale

true relative scale

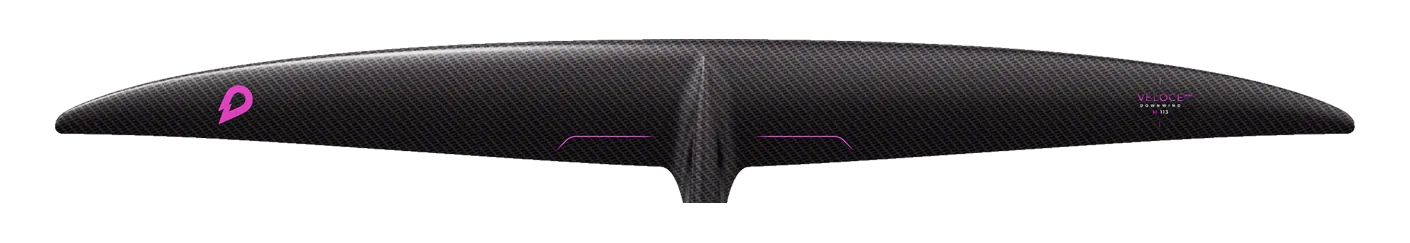

The GONG Veloce DW V3 Atmo XL’s planform, traced from GONG’s own plan-view photograph.

GONG Veloce DW V3 Atmo XL · 1,300 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line).

The Veloce DW V3 Atmo runs 5 sizes, 600–1,200 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,300 mm span is 28% wider than typical for the area — the median across the 121 current wings within 10% of its size is 1,013 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the GONG Veloce DW V3 Atmo XL, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Code Foils	R Series Front Wing 1250R	1,250	+4.2%	13.00	-7.8%	1,275	Very high aspect

Specifications

Every figure is GONG's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Veloce
Size	XL
Area, cm²	1,200
Area basis	unknown
Span, mm	1,300
Chord, mm	128
Aspect ratio	14.10
Band	Very high aspect
Brand’s category	Downwind
Disciplines	downwind, wing, parawing
Construction	Pro Team / 3K Texalium clear carbon prepreg
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
