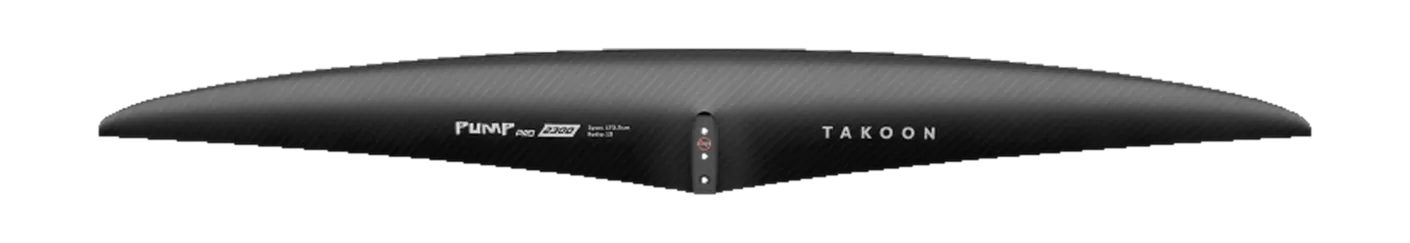

Takoon Pump Pro Front Wing 1150
- 1,150area, cm²
- 1,220span, mm
- 13.00aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Pump Pro Chord 144 mm Brand’s category Pump / dock Disciplines pump, sup high modulus carbon
The Pump Pro Front Wing runs 7 sizes, 950–2,300 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,220 mm span is 20% wider than typical for the area — the median across the 130 current wings within 10% of its size is 1,013 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | SHA Foil Front Wing 1133 | 1,133 | -1.5% | 12.71 | -2.2% | 1,200 | Very high aspect |
| Axis | Fireball ULTRA 1250 | 1,133 | -1.5% | 13.81 | +6.2% | 1,250 | Very high aspect |
| GONG | Veloce HDW V3 XL | 1,200 | +4.3% | 13.30 | +2.3% | 1,260 | Very high aspect |
| GONG | Veloce Light Wind (LW) V3 Atmo XL | 1,200 | +4.3% | 12.70 | -2.3% | 1,230 | Very high aspect |
| KT Foiling | Solus 1110 | 1,110 | -3.5% | 14.00 | +7.7% | 1,250 | Very high aspect |
| North | Sonar DW1100 | 1,100 | -4.3% | 12.00 | -7.7% | 1,150 | Very high aspect |
Specifications
| Family | Pump Pro |
|---|---|
| Size | 1150 |
| Area, cm² | 1,150 |
| Area basis | unknown |
| Span, mm | 1,220 |
| Chord, mm | 144 |
| Aspect ratio | 13.00 |
| Band | Very high aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump, sup |
| Construction | high modulus carbon |
| Model year | — |
| Source | manufacturer · read 2026-09-29 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
