GONG Veloce XTR V3 Atmo XS

600area, cm²
1,010span, mm
16.90aspect ratio
Ultra highaspect · AR > 15.0

Family Veloce Chord 93 mm Brand’s category Downwind Disciplines downwind, race Pro Team / 3K Texalium clear carbon prepreg · 2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Lift Foils Florence 91 X Front Wing (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1F-One MOMENTUM UHM 616no outline2AFS Ultra Front Wing 600no outlineSpecs · table ↓

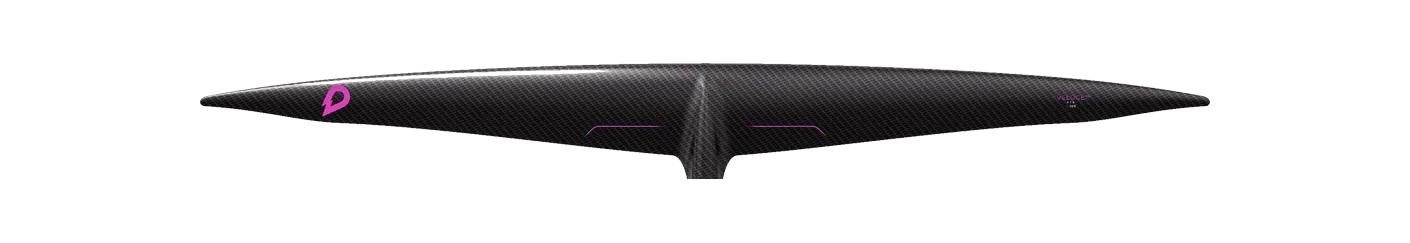

GONG Veloce XTR V3 Atmo XS · 1,010 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Lift Foils Florence 91 X Front Wing · 965 mm

The Veloce XTR V3 Atmo runs 4 sizes, 600–900 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,010 mm span is 38% wider than typical for the area — the median across the 82 current wings within 10% of its size is 730 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the GONG Veloce XTR V3 Atmo XS, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
F-One	MOMENTUM UHM 616	616	+2.7%	16.50	-2.4%	995	Ultra high aspect
AFS	Ultra Front Wing 600	600	+0.0%	16.00	-5.3%	980	Ultra high aspect
Lift Foils	Florence 91 X Front Wing	580	-3.3%	16.00	-5.3%	965	Ultra high aspect
Axis	Tempo 960	578	-3.7%	15.94	-5.7%	960	Ultra high aspect

Specifications

Every figure is GONG's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Veloce
Size	XS
Area, cm²	600
Area basis	unknown
Span, mm	1,010
Chord, mm	93
Aspect ratio	16.90
Band	Ultra high aspect
Brand’s category	Downwind
Disciplines	downwind, race
Construction	Pro Team / 3K Texalium clear carbon prepreg
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
