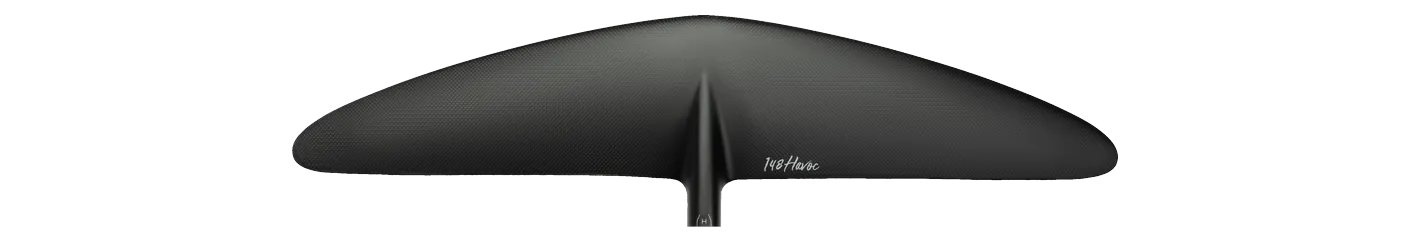

Lift Foils 148 Havoc Front Wing
- 955area, cm²
- 826span, mm
- 7.10aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Havoc Brand’s category Surf / carve Disciplines prone, wake, efoil HM carbon (Toray M3) · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Carve 3.0 D/LAB 950, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Havoc runs 6 sizes, 594–1,290 cm², and changes proportion as it grows: aspect ratio runs 6.1 at one end of the range to 8.5 at the other, so its sizes differ in shape as well as in area.
Its 826 mm span is 13% narrower than typical for the area — the median across the 134 current wings within 10% of its size is 950 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Carve 3.0 D/LAB 950 | 950 | -0.5% | 6.90 | -2.8% | 810 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 990 | 990 | +3.7% | 7.50 | +5.6% | 860 | Mid-low aspect |
| RRD | Thunder Front Wing Y30 950 | 950 | -0.5% | 7.60 | +7.0% | 850 | Mid-low aspect |
Specifications
| Family | Havoc |
|---|---|
| Size | 148 |
| Area, cm² | 955 |
| Area basis | unknown |
| Span, mm | 826 |
| Chord, mm | — |
| Aspect ratio | 7.10 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wake, efoil |
| Construction | HM carbon (Toray M3) |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
