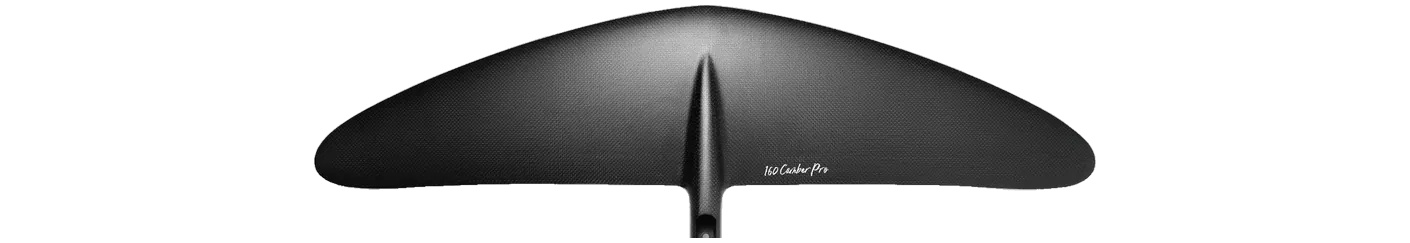

Lift Foils 160 Camber Pro Front Wing
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,032area, cm²
- 800span, mm
- 6.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Camber Pro Brand’s category eFoil / assist Disciplines efoil carbon · 2023
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Ultra Jet Front Wing 1050, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Camber Pro has run 3 sizes, 1,032–1,742 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 4.5 at one end of the range to 6.2 at the other, so its sizes differ in shape as well as in area.
Its 800 mm span is 17% narrower than typical for the area — the median across the 131 current wings within 10% of its size is 960 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Ultra Jet Front Wing 1050 | 1,050 | +1.7% | 5.90 | -4.8% | 785 | Low aspect |
| Axis | BSC (Broad Spectrum Carve) 810 | 1,070 | +3.7% | 6.42 | +3.5% | 810 | Mid-low aspect |
| F-One | PHANTOM Carbon 1080 | 1,080 | +4.7% | 5.90 | -4.8% | 800 | Low aspect |
Specifications
| Family | Camber Pro |
|---|---|
| Size | 160 |
| Area, cm² | 1,032 |
| Area basis | unknown |
| Span, mm | 800 |
| Chord, mm | — |
| Aspect ratio | 6.20 |
| Band | Mid-low aspect |
| Brand’s category | eFoil / assist |
| Disciplines | efoil |
| Construction | carbon |
| Model year | 2023 |
| Source | manufacturer · read 2026-09-11 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
