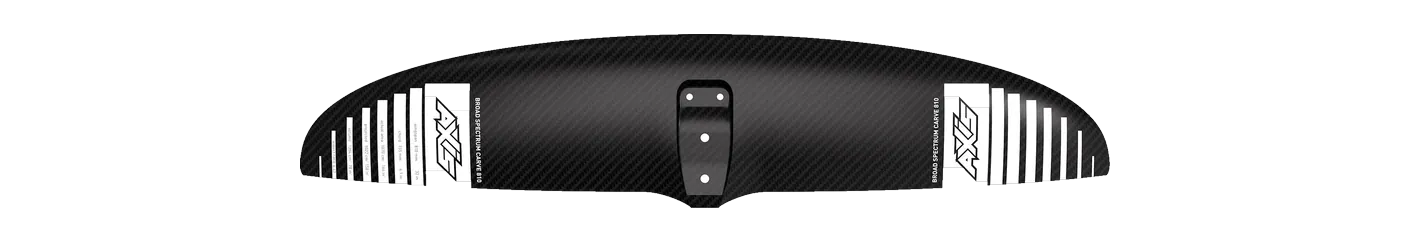

Axis BSC (Broad Spectrum Carve) 810
- 1,070area, cm²
- 810span, mm
- 6.42aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family BSC Area basis flat Chord 155 mm Brand’s category Surf / carve Disciplines wing, downwind, sup, prone, wake, pump, kite carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Duotone Carve 3.0 D/LAB 1100 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The BSC runs 6 sizes, 883–2,102 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 810 mm span is 18% narrower than typical for the area — the median across the 115 current wings within 10% of its size is 991 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| RRD | Universal Mantaray Front Wing Y30 1050 | 1,050 | -1.9% | 6.70 | +4.4% | 840 | Mid-low aspect |
| Duotone | Carve 3.0 D/LAB 1100 | 1,100 | +2.8% | 6.70 | +4.4% | 860 | Mid-low aspect |
| GONG | X-Over V3 L | 1,100 | +2.8% | 6.40 | -0.3% | 840 | Mid-low aspect |
| GONG | X-Over V3 Atmo L | 1,108 | +3.6% | 6.40 | -0.3% | 840 | Mid-low aspect |
| RRD | Blaze LTE Front Wing Y30 1100 | 1,100 | +2.8% | 6.00 | -6.5% | 835 | Low aspect |
| North | Sonar MA1050v2 | 1,050 | -1.9% | 6.90 | +7.5% | 850 | Mid-low aspect |
Specifications
| Family | BSC |
|---|---|
| Size | BSC 810 |
| Area, cm² | 1,070 |
| Area basis | flat |
| Span, mm | 810 |
| Chord, mm | 155 |
| Aspect ratio | 6.42 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, downwind, sup, prone, wake, pump, kite |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
