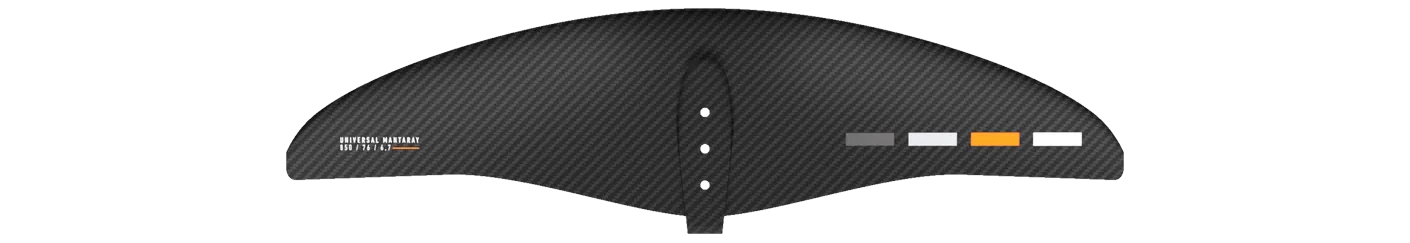

RRD Universal Mantaray Front Wing Y30 1050
- 1,050area, cm²
- 840span, mm
- 6.70aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family UNIVERSAL MANTARAY Brand’s category All-round / freeride Disciplines wing, prone Full Carbon
The Universal Mantaray Front Wing Y30 runs 4 sizes, 650–1,350 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 840 mm span is 13% narrower than typical for the area — the median across the 131 current wings within 10% of its size is 970 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar MA1050v2 | 1,050 | +0.0% | 6.90 | +3.0% | 850 | Mid-low aspect |
| Axis | BSC (Broad Spectrum Carve) 810 | 1,070 | +1.9% | 6.42 | -4.2% | 810 | Mid-low aspect |
| GONG | Ascent V3 L | 1,080 | +2.9% | 7.00 | +4.5% | 870 | Mid-low aspect |
| Axis | HPS (High Performance Speed) 830 | 1,014 | -3.4% | 7.00 | +4.5% | 830 | Mid-low aspect |
| Axis | Spitfire 840 | 1,006 | -4.2% | 7.14 | +6.6% | 840 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1050 | 1,050 | +0.0% | 7.20 | +7.5% | 870 | Mid-low aspect |
| Duotone | Carve 3.0 D/LAB 1100 | 1,100 | +4.8% | 6.70 | +0.0% | 860 | Mid-low aspect |
| GONG | X-Over V3 L | 1,100 | +4.8% | 6.40 | -4.5% | 840 | Mid-low aspect |
| Axis | PNG (Pump and Glide) 850 | 1,102 | +5.0% | 6.81 | +1.6% | 850 | Mid-low aspect |
Specifications
| Family | UNIVERSAL MANTARAY |
|---|---|
| Size | 1050 |
| Area, cm² | 1,050 |
| Area basis | unknown |
| Span, mm | 840 |
| Chord, mm | — |
| Aspect ratio | 6.70 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone |
| Construction | Full Carbon |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
