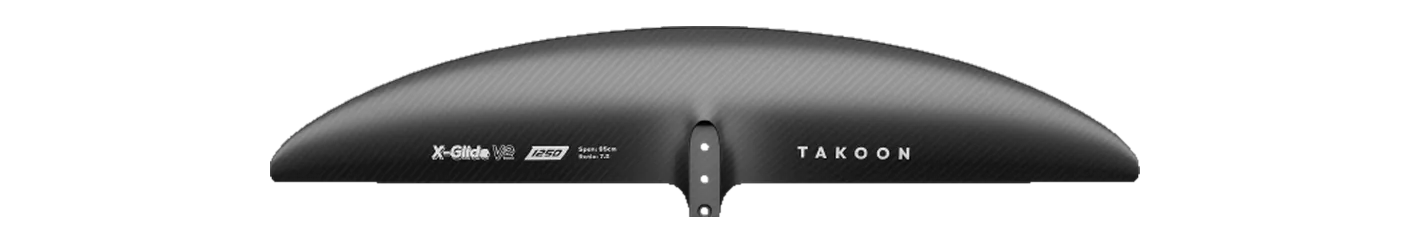

Takoon X-Glide V2 Front Wing 1050
- 1,050area, cm²
- 870span, mm
- 7.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family X-Glide V2 Chord 157 mm Brand’s category All-round / freeride Disciplines wing, prone, sup, pump, downwind
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG Ascent V3 L (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The X-Glide V2 Front Wing runs 4 sizes, 1,050–1,700 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 870 mm span is 10% narrower than typical for the area — the median across the 131 current wings within 10% of its size is 970 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar MA1050v2 | 1,050 | +0.0% | 6.90 | -4.2% | 850 | Mid-low aspect |
| GONG | Ascent V3 L | 1,080 | +2.9% | 7.00 | -2.8% | 870 | Mid-low aspect |
| Axis | HPS (High Performance Speed) 830 | 1,014 | -3.4% | 7.00 | -2.8% | 830 | Mid-low aspect |
| Axis | Spitfire 840 | 1,006 | -4.2% | 7.14 | -0.8% | 840 | Mid-low aspect |
| F-One | SUSHI UHM Carbon 1020 | 1,020 | -2.9% | 7.70 | +6.9% | 885 | Mid-low aspect |
| Omen | Operator 1050 | 1,050 | +0.0% | 7.70 | +6.9% | 900 | Mid-low aspect |
| RRD | Universal Mantaray Front Wing Y30 1050 | 1,050 | +0.0% | 6.70 | -6.9% | 840 | Mid-low aspect |
| Axis | Spitfire 900 | 1,099 | +4.7% | 7.25 | +0.7% | 900 | Mid-low aspect |
| Duotone | Carve 3.0 D/LAB 1100 | 1,100 | +4.8% | 6.70 | -6.9% | 860 | Mid-low aspect |
| Axis | PNG (Pump and Glide) 850 | 1,102 | +5.0% | 6.81 | -5.4% | 850 | Mid-low aspect |
Specifications
| Family | X-Glide V2 |
|---|---|
| Size | 1050 |
| Area, cm² | 1,050 |
| Area basis | unknown |
| Span, mm | 870 |
| Chord, mm | 157 |
| Aspect ratio | 7.20 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone, sup, pump, downwind |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
