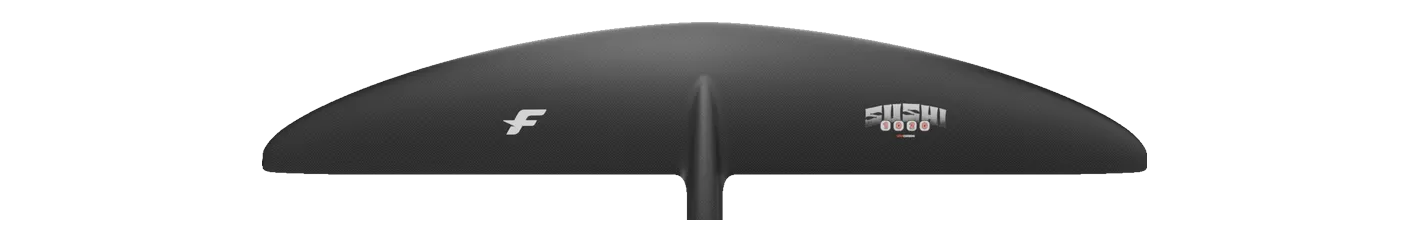

F-One SUSHI UHM Carbon 1020
- 1,020area, cm²
- 885span, mm
- 7.70aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Sushi Brand’s category Surf / carve Disciplines prone, wing, tow UHM carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Armstrong MA Mk II (Mid Aspect) MA990, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The SUSHI UHM Carbon runs 6 sizes, 620–1,020 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 885 mm span is 7% narrower than typical for the area — the median across the 140 current wings within 10% of its size is 950 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | MA Mk II (Mid Aspect) MA990 | 990 | -2.9% | 8.00 | +3.9% | 906 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 990 | 990 | -2.9% | 7.50 | -2.6% | 860 | Mid-low aspect |
| Omen | Operator 1050 | 1,050 | +2.9% | 7.70 | +0.0% | 900 | Mid-low aspect |
| Cabrinha | Fusion H-Series MkII H1000 | 1,000 | -2.0% | 8.10 | +5.2% | 900 | Mid-low aspect |
| Cabrinha | Whippit 1000 | 1,000 | -2.0% | 8.10 | +5.2% | 900 | Mid-low aspect |
| Code Foils | X Series Front Wing 985X | 985 | -3.4% | 8.20 | +6.5% | 896 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1050 | 1,050 | +2.9% | 7.20 | -6.5% | 870 | Mid-low aspect |
| Sabfoil | 909 Balz Muller Limited Müller | 1,000 | -2.0% | 8.26 | +7.3% | 909 | Mid-low aspect |
| Axis | Spitfire 840 | 1,006 | -1.4% | 7.14 | -7.3% | 840 | Mid-low aspect |
| Sabfoil | Blackbird 905 Balz Muller Signature | 998 | -2.2% | 8.30 | +7.8% | 905 | Mid-low aspect |
Specifications
| Family | Sushi |
|---|---|
| Size | SUSHI 1020 |
| Area, cm² | 1,020 |
| Area basis | unknown |
| Span, mm | 885 |
| Chord, mm | — |
| Aspect ratio | 7.70 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wing, tow |
| Construction | UHM carbon |
| Model year | 2026 |
| Source | manufacturer · read 2026-08-16 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
