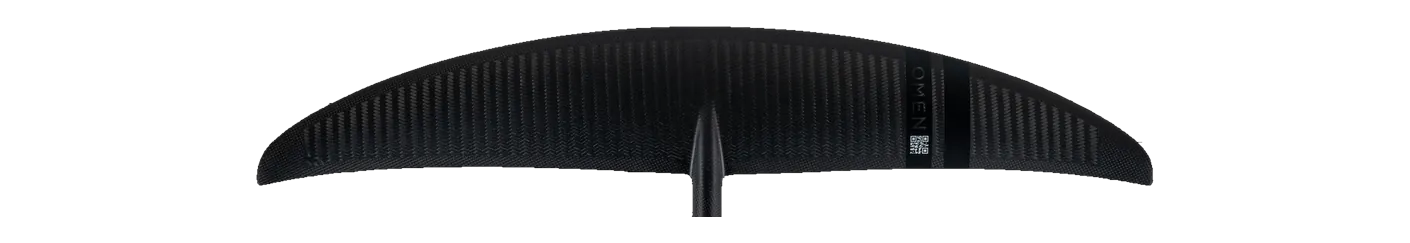

Omen Operator 1050 Operator 1050 hydrofoil front wing: 1,050 cm², 900 mm span, aspect ratio 7.70, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Omen's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | SK8 HM Carbon (T2) SK8 HM CARBON 1050 | 1,050 | +0.0% | 8.00 | +3.9% | 915 | C2 Mid-low aspect |
| North | Sonar SF1080 SF1080 | 1,080 | +2.9% | 7.80 | +1.3% | 915 | C2 Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1050 | 1,050 | +0.0% | 7.20 | -6.5% | 870 | C2 Mid-low aspect |
| F-One | SEVEN SEAS Carbon SEVEN SEAS 1100 | 1,100 | +4.8% | 8.00 | +3.9% | 940 | C2 Mid-low aspect |
| Takuma | Kujira II Front Wing Kujira II 1100 | 1,100 | +4.8% | 8.00 | +3.9% | 938 | C2 Mid-low aspect |
| Code Foils | X Series Front Wing 1085X | 1,085 | +3.3% | 8.20 | +6.5% | 940 | C2 Mid-low aspect |
| Cabrinha | Whippit 1000 | 1,000 | -4.8% | 8.10 | +5.2% | 900 | C2 Mid-low aspect |
| Axis | Spitfire Spitfire 900 | 1,099 | +4.7% | 7.25 | -5.8% | 900 | C2 Mid-low aspect |
| Unifoil | Aggression 170 Aggression 170 | 1,096 | +4.4% | 8.20 | +6.5% | 950 | C2 Mid-low aspect |
| Axis | Spitfire Spitfire 840 | 1,006 | -4.2% | 7.14 | -7.3% | 840 | C2 Mid-low aspect |
| Sabfoil | 909 Balz Muller Limited 909 Balz Müller Limited | 1,000 | -4.8% | 8.26 | +7.3% | 909 | C2 Mid-low aspect |
| Unifoil | Progression 170 Progression 170 | 1,097 | +4.5% | 8.30 | +7.8% | 953 | C2 Mid-low aspect |
| Sabfoil | Blackbird 905 Balz Muller Signature Blackbird 905 | 998 | -5.0% | 8.30 | +7.8% | 905 | C2 Mid-low aspect |
| Family | Operator |
|---|---|
| Size | Operator 1050 |
| Area, cm² | 1,050 |
| Area basis | unknown |
| Span, mm | 900 |
| Chord, mm | — |
| Aspect ratio | 7.70 |
| Band | C2 Mid-low aspect |
| Brand files it under | Surf / carve |
| Disciplines | prone, wing, downwind, tow |
| Construction | carbon (layup engineered by Peter Lederer) |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Omen on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
