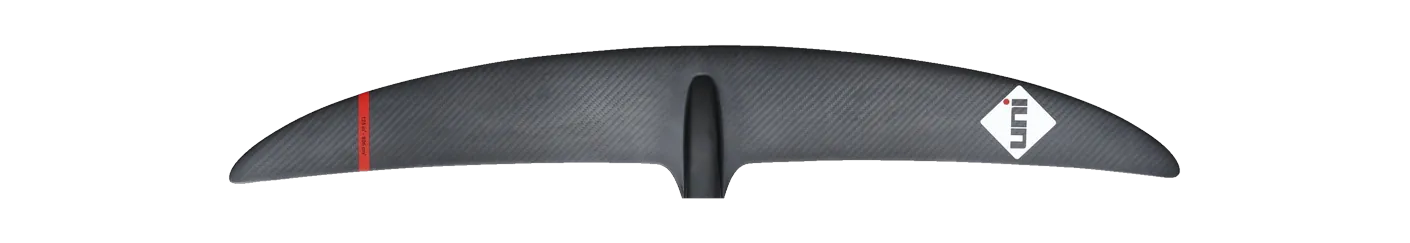

Unifoil Progression 170 Progression 170 hydrofoil front wing: 1,097 cm², 953 mm span, aspect ratio 8.30, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Unifoil's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | X Series Front Wing 1085X | 1,085 | -1.1% | 8.20 | -1.2% | 940 | C2 Mid-low aspect |
| KT Foiling | Instinct 1120 Instinct 1120 | 1,120 | +2.1% | 8.40 | +1.2% | 971 | C2 Mid-low aspect |
| GONG | Curve H V3 FG L | 1,070 | -2.5% | 8.40 | +1.2% | 950 | C2 Mid-low aspect |
| F-One | SEVEN SEAS Carbon SEVEN SEAS 1100 | 1,100 | +0.3% | 8.00 | -3.6% | 940 | C2 Mid-low aspect |
| Takuma | Kujira II Front Wing Kujira II 1100 | 1,100 | +0.3% | 8.00 | -3.6% | 938 | C2 Mid-low aspect |
| North | Sonar SF1080 SF1080 | 1,080 | -1.5% | 7.80 | -6.0% | 915 | C2 Mid-low aspect |
| Takoon | Flare Front Wing 1050 | 1,050 | -4.3% | 8.60 | +3.6% | 950 | C3 Mid aspect |
| F-One | SK8 HM Carbon (T2) SK8 HM CARBON 1050 | 1,050 | -4.3% | 8.00 | -3.6% | 915 | C2 Mid-low aspect |
| F-One | SK8 HM Carbon (T2) SK8 HM CARBON 1150 | 1,150 | +4.8% | 8.00 | -3.6% | 960 | C2 Mid-low aspect |
| Slingshot | One-Lock Glide 1125 | 1,125 | +2.6% | 8.90 | +7.2% | 999 | C3 Mid aspect |
| Duotone | Crest D/LAB 1050 | 1,050 | -4.3% | 8.80 | +6.0% | 960 | C3 Mid aspect |
| Omen | Operator 1050 Operator 1050 | 1,050 | -4.3% | 7.70 | -7.2% | 900 | C2 Mid-low aspect |
| Family | Progression |
|---|---|
| Size | Progression 170 |
| Area, cm² | 1,097 |
| Area basis | unknown |
| Span, mm | 953 |
| Chord, mm | 122 |
| Aspect ratio | 8.30 |
| Band | C2 Mid-low aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | prone, wing, downwind, tow |
| Construction | carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Unifoil on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
