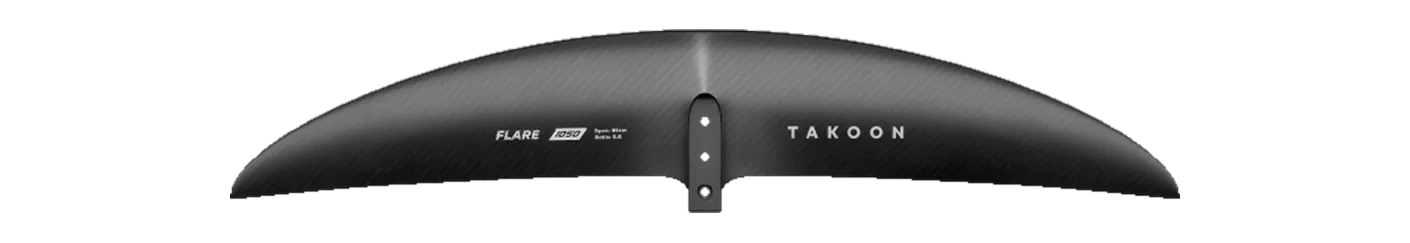

Takoon Flare Front Wing 1050
- 1,050area, cm²
- 950span, mm
- 8.60aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Flare Chord 147 mm Brand’s category Surf / carve Disciplines wing, prone
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Crest D/LAB 1050, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Flare Front Wing runs 8 sizes, 550–1,400 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 950 mm span is 2% narrower than typical for the area — the median across the 131 current wings within 10% of its size is 970 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Duotone | Crest D/LAB 1050 | 1,050 | +0.0% | 8.80 | +2.3% | 960 | Mid aspect |
| GONG | Curve H V3 FG L | 1,070 | +1.9% | 8.40 | -2.3% | 950 | Mid-low aspect |
| AFS | Silk V2 Front Wing 1050 | 1,050 | +0.0% | 9.00 | +4.7% | 972 | Mid aspect |
| Code Foils | X Series Front Wing 1085X | 1,085 | +3.3% | 8.20 | -4.7% | 940 | Mid-low aspect |
| GONG | Fluid H V3 FG L | 1,010 | -3.8% | 8.40 | -2.3% | 920 | Mid-low aspect |
| GONG | Fluid V3 Atmo L (Team / Carbon HM) | 1,010 | -3.8% | 8.70 | +1.2% | 940 | Mid aspect |
| F-One | SK8 HM Carbon (T2) 1050 | 1,050 | +0.0% | 8.00 | -7.0% | 915 | Mid-low aspect |
| Naish | Jet HA Front Wing 1040 | 1,040 | -1.0% | 9.20 | +7.0% | 980 | Mid aspect |
| Unifoil | Aggression 170 | 1,096 | +4.4% | 8.20 | -4.7% | 950 | Mid-low aspect |
| Unifoil | Progression 170 | 1,097 | +4.5% | 8.30 | -3.5% | 953 | Mid-low aspect |
| Cabrinha | Fusion H-Series MkII H1000 | 1,000 | -4.8% | 8.10 | -5.8% | 900 | Mid-low aspect |
| Cabrinha | Whippit 1000 | 1,000 | -4.8% | 8.10 | -5.8% | 900 | Mid-low aspect |
| Duotone | Whizz SLS 1000 | 1,000 | -4.8% | 8.50 | -1.2% | 920 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1100 | 1,100 | +4.8% | 8.00 | -7.0% | 940 | Mid-low aspect |
| Naish | Siren MA Front Wing 1000 | 1,000 | -4.8% | 8.54 | -0.7% | 922 | Mid aspect |
| Sabfoil | 909 Balz Muller Limited Müller | 1,000 | -4.8% | 8.26 | -4.0% | 909 | Mid-low aspect |
| Takuma | Kujira II Front Wing 1100 | 1,100 | +4.8% | 8.00 | -7.0% | 938 | Mid-low aspect |
| Sabfoil | Blackbird 905 Balz Muller Signature | 998 | -5.0% | 8.30 | -3.5% | 905 | Mid-low aspect |
Specifications
| Family | Flare |
|---|---|
| Size | 1050 |
| Area, cm² | 1,050 |
| Area basis | unknown |
| Span, mm | 950 |
| Chord, mm | 147 |
| Aspect ratio | 8.60 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
