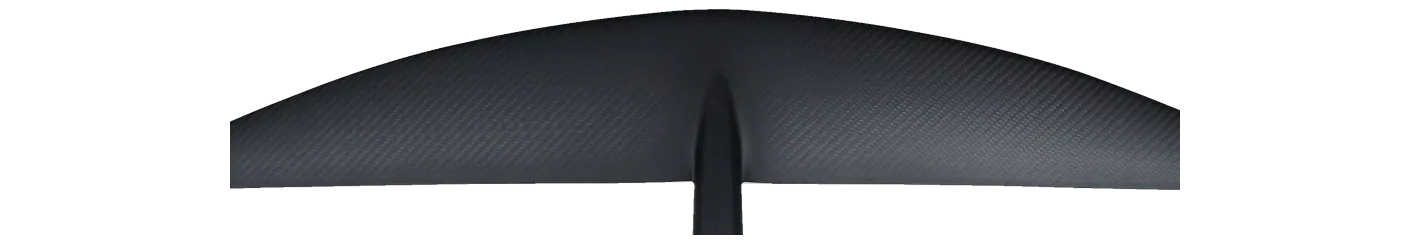

Unifoil Aggression 170
- 1,096area, cm²
- 950span, mm
- 8.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Aggression Chord 151 mm Brand’s category Surf / carve Disciplines prone, sup, downwind, parawing, wing, tow, wake carbon · 2026
The Aggression runs 5 sizes, 677–1,096 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 950 mm span is 5% narrower than typical for the area — the median across the 122 current wings within 10% of its size is 1,000 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | X Series Front Wing 1085X | 1,085 | -1.0% | 8.20 | +0.0% | 940 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1100 | 1,100 | +0.4% | 8.00 | -2.4% | 940 | Mid-low aspect |
| Takuma | Kujira II Front Wing 1100 | 1,100 | +0.4% | 8.00 | -2.4% | 938 | Mid-low aspect |
| KT Foiling | Instinct 1120 | 1,120 | +2.2% | 8.40 | +2.4% | 971 | Mid-low aspect |
| GONG | Curve H V3 FG L | 1,070 | -2.4% | 8.40 | +2.4% | 950 | Mid-low aspect |
| North | Sonar SF1080 | 1,080 | -1.5% | 7.80 | -4.9% | 915 | Mid-low aspect |
| F-One | SK8 HM Carbon (T2) 1050 | 1,050 | -4.2% | 8.00 | -2.4% | 915 | Mid-low aspect |
| Omen | Operator 1050 | 1,050 | -4.2% | 7.70 | -6.1% | 900 | Mid-low aspect |
| Takoon | Flare Front Wing 1050 | 1,050 | -4.2% | 8.60 | +4.9% | 950 | Mid aspect |
| Duotone | Crest D/LAB 1050 | 1,050 | -4.2% | 8.80 | +7.3% | 960 | Mid aspect |
| F-One | SK8 HM Carbon (T2) 1150 | 1,150 | +4.9% | 8.00 | -2.4% | 960 | Mid-low aspect |
Specifications
| Family | Aggression |
|---|---|
| Size | Aggression 170 |
| Area, cm² | 1,096 |
| Area basis | unknown |
| Span, mm | 950 |
| Chord, mm | 151 |
| Aspect ratio | 8.20 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, sup, downwind, parawing, wing, tow, wake |
| Construction | carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
