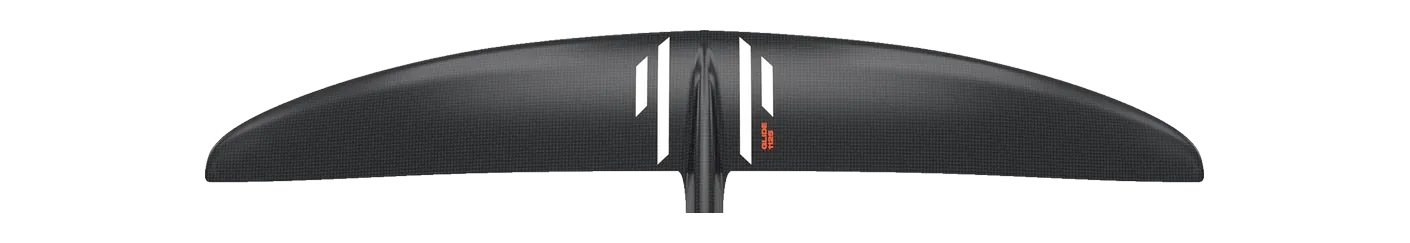

Slingshot One-Lock Glide 1125
- 1,125area, cm²
- 999span, mm
- 8.90aspect ratio
- Midaspect · AR 8.5 – 9.5
Family One-Lock Glide Brand’s category Glide / high aspect Disciplines wing, prone, wake, pump carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the AFS Silk V2 Front Wing 1150, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The One-Lock Glide runs 7 sizes, 625–1,525 cm²; aspect ratio moves 8.4–9.0 across the range.
Its 999 mm span is typical for the area: the median across the 110 current wings within 10% of its size is 1,010 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Silk V2 Front Wing 1150 | 1,150 | +2.2% | 9.00 | +1.1% | 1,017 | Mid aspect |
| GONG | Fluid V3 Atmo XL (Team / Carbon HM) | 1,160 | +3.1% | 8.70 | -2.2% | 1,000 | Mid aspect |
| GONG | Fluid H V3 FG XL | 1,160 | +3.1% | 8.40 | -5.6% | 990 | Mid-low aspect |
| KT Foiling | Instinct 1120 | 1,120 | -0.4% | 8.40 | -5.6% | 971 | Mid-low aspect |
| Unifoil | Evolution 175 | 1,129 | +0.4% | 9.40 | +5.6% | 1,028 | Mid aspect |
| Code Foils | S Series Front Wing 1130S | 1,130 | +0.4% | 9.50 | +6.7% | 1,035 | Mid aspect |
| ENSIS | FLOW ACE Front Wing 1080 | 1,080 | -4.0% | 9.50 | +6.7% | 1,013 | Mid aspect |
| F-One | EAGLE HM Carbon 1090 | 1,090 | -3.1% | 9.50 | +6.7% | 1,020 | Mid aspect |
| KT Foiling | Nomad 1160 | 1,160 | +3.1% | 9.50 | +6.7% | 1,050 | Mid aspect |
| Unifoil | Progression 170 | 1,097 | -2.5% | 8.30 | -6.7% | 953 | Mid-low aspect |
| Axis | Surge 1010 | 1,076 | -4.4% | 9.49 | +6.6% | 1,010 | Mid aspect |
| GONG | Curve H V3 FG L | 1,070 | -4.9% | 8.40 | -5.6% | 950 | Mid-low aspect |
| Code Foils | X Series Front Wing 1085X | 1,085 | -3.6% | 8.20 | -7.9% | 940 | Mid-low aspect |
| Unifoil | Aggression 170 | 1,096 | -2.6% | 8.20 | -7.9% | 950 | Mid-low aspect |
Specifications
| Family | One-Lock Glide |
|---|---|
| Size | 1125 |
| Area, cm² | 1,125 |
| Area basis | unknown |
| Span, mm | 999 |
| Chord, mm | — |
| Aspect ratio | 8.90 |
| Band | Mid aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, wake, pump |
| Construction | carbon |
| Model year | 2026 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
