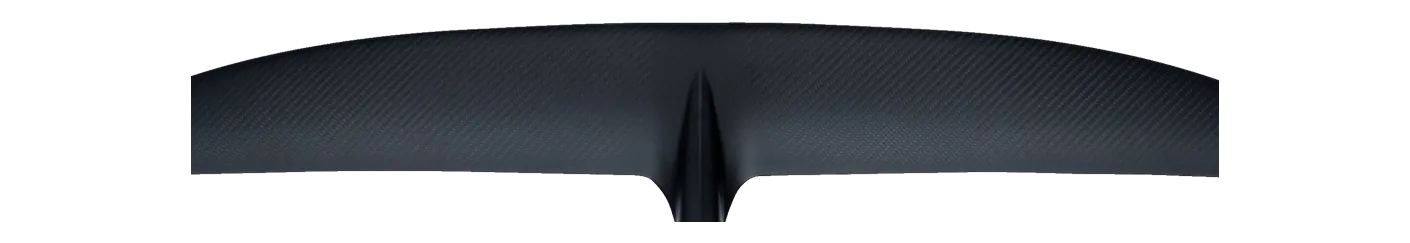

Unifoil Evolution 175 Evolution 175 hydrofoil front wing: 1,129 cm², 1,028 mm span, aspect ratio 9.40, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Unifoil's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | S Series Front Wing 1130S | 1,130 | +0.1% | 9.50 | +1.1% | 1,035 | C3 Mid aspect |
| KT Foiling | Nomad 1160 Nomad 1160 | 1,160 | +2.7% | 9.50 | +1.1% | 1,050 | C3 Mid aspect |
| F-One | EAGLE HM Carbon EAGLE 1090 | 1,090 | -3.5% | 9.50 | +1.1% | 1,020 | C3 Mid aspect |
| ENSIS | FLOW ACE Front Wing 1080 | 1,080 | -4.3% | 9.50 | +1.1% | 1,013 | C3 Mid aspect |
| Axis | Surge Surge 1010 | 1,076 | -4.7% | 9.49 | +1.0% | 1,010 | C3 Mid aspect |
| Slingshot | One-Lock Glide 1125 | 1,125 | -0.4% | 8.90 | -5.3% | 999 | C3 Mid aspect |
| AFS | Silk V2 Front Wing Silk 1150 | 1,150 | +1.9% | 9.00 | -4.3% | 1,017 | C3 Mid aspect |
| Armstrong | HA (High Aspect) HA1080 | 1,080 | -4.3% | 9.63 | +2.4% | 1,020 | C4 High aspect |
| Armstrong | HA (High Aspect) HA1180 | 1,180 | +4.5% | 9.63 | +2.4% | 1,066 | C4 High aspect |
| Lift Foils | 180 Vario Front Wing 180 | 1,161 | +2.8% | 9.80 | +4.3% | 1,067 | C4 High aspect |
| GONG | Veloce V3 Atmo XL | 1,150 | +1.9% | 10.10 | +7.4% | 1,080 | C4 High aspect |
| GONG | Fluid V3 Atmo XL | 1,160 | +2.7% | 8.70 | -7.4% | 1,000 | C3 Mid aspect |
| Family | Evolution |
|---|---|
| Size | Evolution 175 |
| Area, cm² | 1,129 |
| Area basis | unknown |
| Span, mm | 1,028 |
| Chord, mm | 128 |
| Aspect ratio | 9.40 |
| Band | C3 Mid aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | prone, wing, downwind, tow |
| Construction | HM carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Unifoil on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
