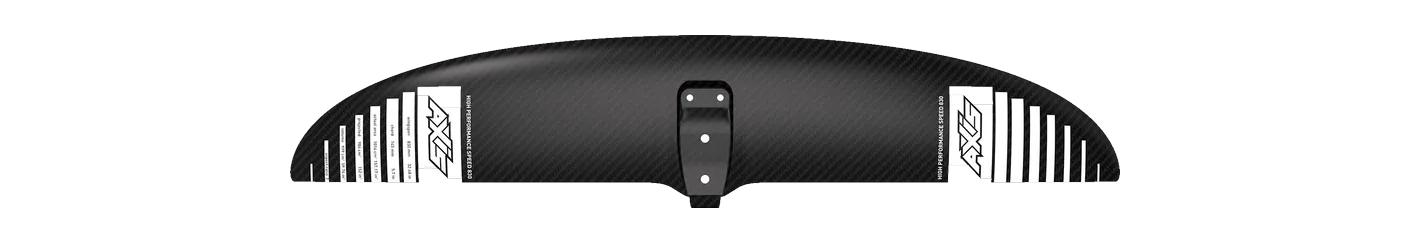

Axis HPS (High Performance Speed) HPS 830 hydrofoil front wing: 1,014 cm², 830 mm span, aspect ratio 7.00, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar MA1050v2 MA1050v2 | 1,050 | +3.6% | 6.90 | -1.4% | 850 | C2 Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1050 | 1,050 | +3.6% | 7.20 | +2.9% | 870 | C2 Mid-low aspect |
| RRD | Universal Mantaray Front Wing Y30 1050 | 1,050 | +3.6% | 6.70 | -4.3% | 840 | C2 Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 990 | 990 | -2.4% | 7.50 | +7.1% | 860 | C2 Mid-low aspect |
| Family | HPS |
|---|---|
| Size | HPS 830 |
| Area, cm² | 1,014 |
| Area basis | flat |
| Span, mm | 830 |
| Chord, mm | 145 |
| Aspect ratio | 7.00 |
| Band | C2 Mid-low aspect |
| Brand files it under | All-round / freeride |
| Disciplines | wing, downwind, prone, sup, kite, pump, wake |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
