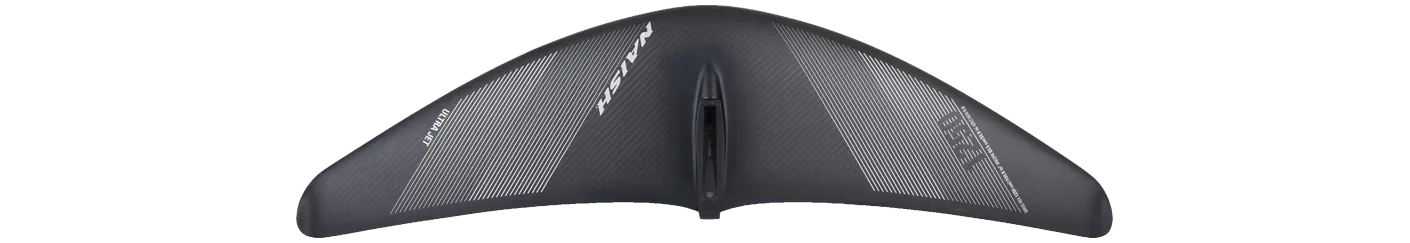

Naish Ultra Jet Front Wing 1250
- 1,250area, cm²
- 835span, mm
- 5.60aspect ratio
- Lowaspect · AR ≤ 6.0
Family Ultra Jet Area basis projected Brand’s category All-round / freeride Disciplines wing, sup, kite, prone carbon/glass composite · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Armstrong S1 (Step 1) 1250, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ultra Jet Front Wing runs 8 sizes, 650–2,450 cm², and changes proportion as it grows: aspect ratio runs 4.1 at one end of the range to 7.1 at the other, so its sizes differ in shape as well as in area.
Its 835 mm span is 19% narrower than typical for the area — the median across the 109 current wings within 10% of its size is 1,035 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | S1 (Step 1) 1250 | 1,250 | +0.0% | 5.70 | +1.8% | 848 | Low aspect |
| Lift Foils | 200 Surf V2 Front Wing | 1,290 | +3.2% | 5.40 | -3.6% | 826 | Low aspect |
| Slingshot | One-Lock Ease 1250 | 1,250 | +0.0% | 5.30 | -5.4% | 817 | Low aspect |
| F-One | PHANTOM Carbon 1280 | 1,280 | +2.4% | 5.90 | +5.4% | 870 | Low aspect |
| Takuma | Kujira Helium Front Wing 1200 | 1,200 | -4.0% | 5.50 | -1.8% | 815 | Low aspect |
| ENSIS | PACER Front Wing 1250 | 1,250 | +0.0% | 6.00 | +7.1% | 864 | Low aspect |
| RRD | Blaze LTE Front Wing Y30 1250 | 1,250 | +0.0% | 6.00 | +7.1% | 865 | Low aspect |
Specifications
| Family | Ultra Jet |
|---|---|
| Size | Ultra Jet 1250 |
| Area, cm² | 1,250 |
| Area basis | projected |
| Span, mm | 835 |
| Chord, mm | — |
| Aspect ratio | 5.60 |
| Band | Low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, sup, kite, prone |
| Construction | carbon/glass composite |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
