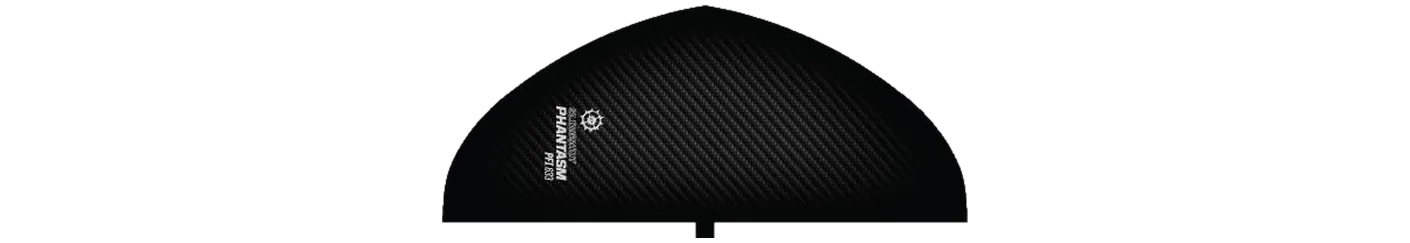

Slingshot PFI 633
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,270area, cm²
- 633span, mm
- 3.16aspect ratio
- Lowaspect · AR ≤ 6.0
Family Phantasm PFI Brand’s category Kite Disciplines kite, wing carbon · 2022
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Axis SP (Surf Performance) 660 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.
The Phantasm PFI has run 4 sizes, 1,270–2,389 cm², including discontinued sizes; aspect ratio moves 3.2–3.7 across the range.
Its 633 mm span is 39% narrower than typical for the area — the median across the 105 current wings within 10% of its size is 1,030 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 4.9× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | SP (Surf Performance) 660 | 1,113 | -12.4% | 3.91 | +23.7% | 660 | Low aspect |
| Naish | Kite Foil Front Wing 980 | 980 | -22.8% | 4.20 | +32.9% | 640 | Low aspect |
| F-One | IC6 950 V.3 | 965 | -24.0% | 4.40 | +39.2% | 650 | Low aspect |
Specifications
| Family | Phantasm PFI |
|---|---|
| Size | 633 |
| Area, cm² | 1,270 |
| Area basis | unknown |
| Span, mm | 633 |
| Chord, mm | — |
| Aspect ratio | 3.16 |
| Band | Low aspect |
| Brand’s category | Kite |
| Disciplines | kite, wing |
| Construction | carbon |
| Model year | 2022 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
