Fast Bobby · Front wings · Slingshot · discontinued

Slingshot Quantum 100

Discontinuedsuperseded or no longer in the brand’s current range
1,724area, cm²
1,008span, mm
5.89aspect ratio
Lowaspect · AR ≤ 6.0

Family Hover Glide Quantum Chord 211 mm Brand’s category Glide / high aspect Disciplines pump, wake, wing carbon · 2021

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Free 1750, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

2Takuma Kujira Helium Front Wing 1750no outlineSpecs · table ↓

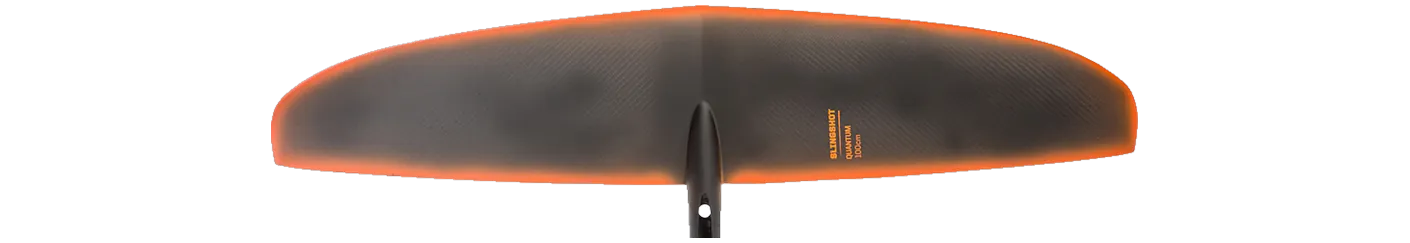

Slingshot Quantum 100 · 1,008 mm span · traced from a distributor’s photograph · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Duotone Free 1750 · 1,020 mm

Its 1,008 mm span is 16% narrower than typical for the area — the median across the 67 current wings within 10% of its size is 1,200 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Slingshot Quantum 100, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Duotone	Free 1750	1,750	+1.5%	6.00	+1.9%	1,020	Low aspect
Takuma	Kujira Helium Front Wing 1750	1,750	+1.5%	5.50	-6.6%	980	Low aspect
Cabrinha	Fusion X-Series MkII X1650	1,650	-4.3%	6.18	+4.9%	1,010	Mid-low aspect
AFS	Flyer Front Wing 1800	1,800	+4.4%	6.30	+7.0%	1,050	Mid-low aspect
Takoon	Starter Front Wing 1800	1,800	+4.4%	5.50	-6.6%	1,000	Low aspect

Specifications

Every figure is Slingshot's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Hover Glide Quantum
Size	100
Area, cm²	1,724
Area basis	unknown
Span, mm	1,008
Chord, mm	211
Aspect ratio	5.89
Band	Low aspect
Brand’s category	Glide / high aspect
Disciplines	pump, wake, wing
Construction	carbon
Model year	2021
Source	manufacturer · read 2026-10-05

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
