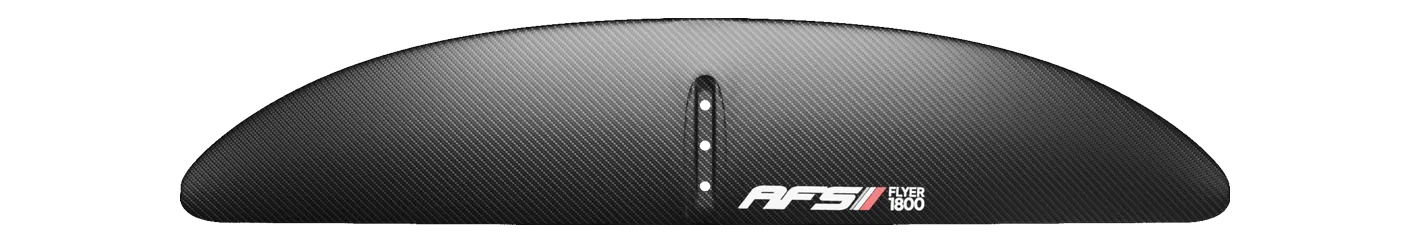

AFS Flyer Front Wing 1800

1,800area, cm²
1,050span, mm
6.30aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family FLYER Chord 205 mm Brand’s category Entry Disciplines wing, sup Full carbon · 2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Axis BSC (Broad Spectrum Carve) 1060 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1F-One PHANTOM Carbon 1780no outline6ENSIS PACER Front Wing 1850no outlineSpecs · table ↓

AFS Flyer Front Wing 1800 · 1,050 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Axis BSC (Broad Spectrum Carve) 1060 · 1,060 mm

Its 1,050 mm span is 18% narrower than typical for the area — the median across the 62 current wings within 10% of its size is 1,285 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the AFS Flyer Front Wing 1800, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
F-One	PHANTOM Carbon 1780	1,780	-1.1%	6.40	+1.6%	1,070	Mid-low aspect
Axis	BSC (Broad Spectrum Carve) 1060	1,803	+0.2%	6.51	+3.3%	1,060	Mid-low aspect
GONG	X-Over V3 XXL	1,750	-2.8%	6.40	+1.6%	1,060	Mid-low aspect
GONG	X-Over V3 Atmo XXL	1,747	-2.9%	6.40	+1.6%	1,060	Mid-low aspect
Duotone	Free 1750	1,750	-2.8%	6.00	-4.8%	1,020	Low aspect
ENSIS	PACER Front Wing 1850	1,850	+2.8%	6.00	-4.8%	1,054	Low aspect
RRD	Blaze LTE Front Wing Y30 1850	1,850	+2.8%	6.00	-4.8%	1,035	Low aspect
Naish	Jet HA Front Wing 1840	1,840	+2.2%	6.80	+7.9%	1,120	Mid-low aspect

Specifications

Every figure is AFS's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	FLYER
Size	1800
Area, cm²	1,800
Area basis	unknown
Span, mm	1,050
Chord, mm	205
Aspect ratio	6.30
Band	Mid-low aspect
Brand’s category	Entry
Disciplines	wing, sup
Construction	Full carbon
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
