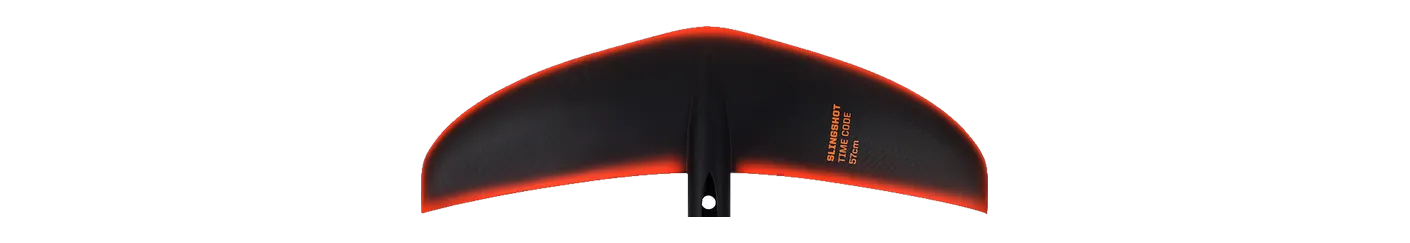

Slingshot Time Code 57
- Discontinuedsuperseded or no longer in the brand’s current range
- 707area, cm²
- 567span, mm
- 4.50aspect ratio
- Lowaspect · AR ≤ 6.0
Family Hover Glide Time Code Chord 143 mm Brand’s category All-round / freeride Disciplines wake, kite carbon · 2019
No current wing from another brand is within the tolerances; the nearest are drawn instead, ranked closest first. The Axis HPS (High Performance Speed) 650 (#1) is already over it. Select a numbered wing to draw it — up to three at a time.
Its 567 mm span is 31% narrower than typical for the area — the median across the 124 current wings within 10% of its size is 820 mm.
Closest wings from other brands
No current wing from another brand is within ±5% of area and ±8% of aspect ratio of this one.
The nearest current wings
None of these is within the tolerances above — each misses on area, on aspect ratio, or on both, by up to 3.6× the tolerance.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | HPS (High Performance Speed) 650 | 769 | +8.8% | 5.49 | +22.0% | 650 | Low aspect |
| Naish | Kite Foil Front Wing 810 | 810 | +14.6% | 5.10 | +13.3% | 640 | Low aspect |
| F4 Foils | GP Coyote 824 | 809 | +14.4% | 5.80 | +28.9% | 690 | Low aspect |
Specifications
| Family | Hover Glide Time Code |
|---|---|
| Size | 57 |
| Area, cm² | 707 |
| Area basis | unknown |
| Span, mm | 567 |
| Chord, mm | 143 |
| Aspect ratio | 4.50 |
| Band | Low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wake, kite |
| Construction | carbon |
| Model year | 2019 |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
