Sroka Pump Foil PF 1500

1,500area, cm²
1,410span, mm
13.20aspect ratio
Very highaspect · AR 11.5 – 15.0

Family Pump Foil Chord 136 mm Brand’s category Pump / dock Disciplines pump carbon prepreg partly high-modulus (carbone prépreg en partie haut module)

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Duotone Amp 2.0 SLS 1550, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

Specs · table ↓

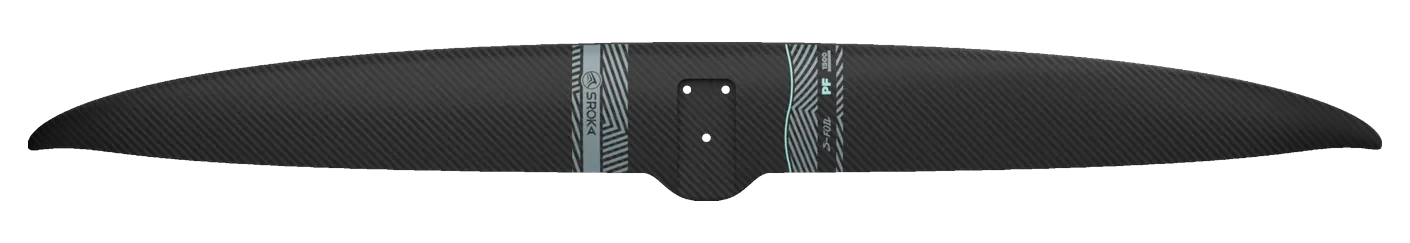

Sroka Pump Foil PF 1500 · 1,410 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Duotone Amp 2.0 SLS 1550 · 1,430 mm

The Pump Foil runs 3 sizes, 1,500–2,200 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,410 mm span is 26% wider than typical for the area — the median across the 85 current wings within 10% of its size is 1,120 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Sroka Pump Foil PF 1500, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Duotone	Amp 2.0 SLS 1550	1,550	+3.3%	13.20	+0.0%	1,430	Very high aspect
Takoon	Pump Pro Front Wing 1550	1,550	+3.3%	13.00	-1.5%	1,420	Very high aspect
Sabfoil	Leviathan Blackbird 1400	1,549	+3.3%	12.30	-6.8%	1,380	Very high aspect

Specifications

Every figure is Sroka's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Pump Foil
Size	PF 1500
Area, cm²	1,500
Area basis	unknown
Span, mm	1,410
Chord, mm	136
Aspect ratio	13.20
Band	Very high aspect
Brand’s category	Pump / dock
Disciplines	pump
Construction	carbon prepreg partly high-modulus (carbone prépreg en partie haut module)
Model year	—
Source	manufacturer · read 2026-10-05

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
