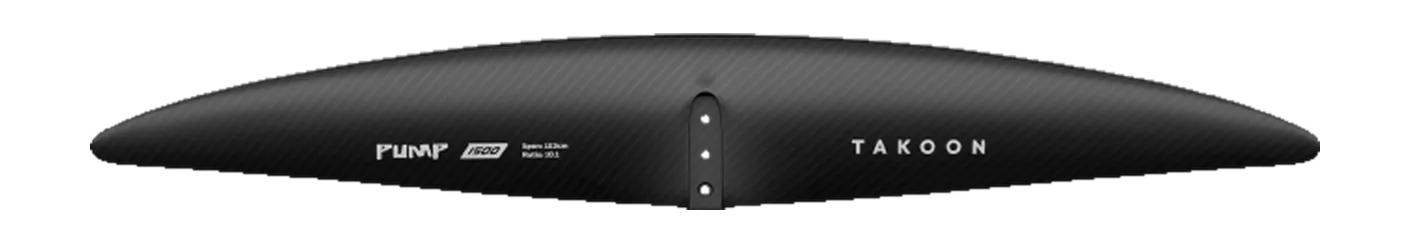

Takoon Pump Front Wing 1500

1,500area, cm²
1,230span, mm
10.10aspect ratio
Highaspect · AR 9.5 – 11.5

Family Pump Chord 174 mm Brand’s category Pump / dock Disciplines pump, sup

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the GONG Sirus V3 L (#4), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1North Sonar HA1450no outline2Code Foils S Series Front Wing 1540Sno outline3Unifoil Evolution 235no outline5GONG Sirus V3 Atmo L (Perf / fiberglass)no outlineSpecs · table ↓

Takoon Pump Front Wing 1500 · 1,230 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ GONG Sirus V3 L · 1,160 mm

The Pump Front Wing runs 3 sizes, 1,500–1,900 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,230 mm span is 11% wider than typical for the area — the median across the 81 current wings within 10% of its size is 1,110 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Takoon Pump Front Wing 1500, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
North	Sonar HA1450	1,450	-3.3%	10.00	-1.0%	1,200	High aspect
Code Foils	S Series Front Wing 1540S	1,540	+2.7%	9.50	-5.9%	1,210	Mid aspect
Unifoil	Evolution 235	1,516	+1.1%	9.40	-6.9%	1,191	Mid aspect
GONG	Sirus V3 L	1,450	-3.3%	9.30	-7.9%	1,160	Mid aspect
GONG	Sirus V3 Atmo L (Perf / fiberglass)	1,442	-3.9%	9.30	-7.9%	1,160	Mid aspect

Specifications

Every figure is Takoon's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Pump
Size	1500
Area, cm²	1,500
Area basis	unknown
Span, mm	1,230
Chord, mm	174
Aspect ratio	10.10
Band	High aspect
Brand’s category	Pump / dock
Disciplines	pump, sup
Construction	—
Model year	—
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
