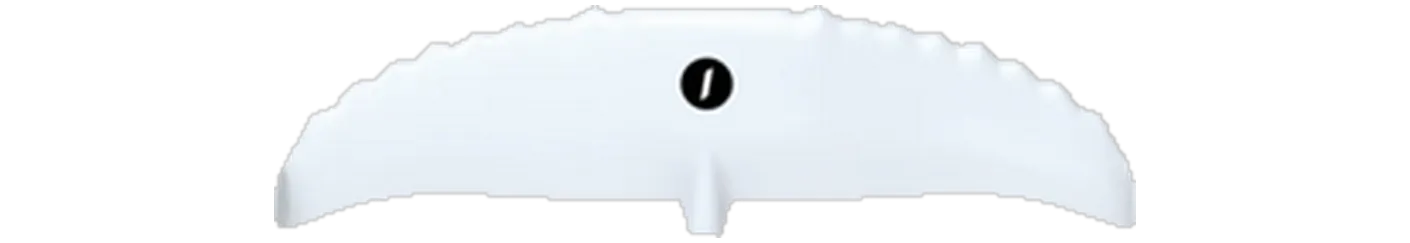

Takuma Kujira Helium Front Wing 1750
- 1,750area, cm²
- 980span, mm
- 5.50aspect ratio
- Lowaspect · AR ≤ 6.0
Family Kujira Helium Chord 218 mm Brand’s category Entry Disciplines prone, sup, wing, downwind carbon composite with helium foam core · 2022-2025
The Kujira Helium Front Wing runs 3 sizes, 1,200–1,750 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 980 mm span is 19% narrower than typical for the area — the median across the 67 current wings within 10% of its size is 1,210 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | Starter Front Wing 1800 | 1,800 | +2.9% | 5.50 | +0.0% | 1,000 | Low aspect |
Specifications
| Family | Kujira Helium |
|---|---|
| Size | Kujira Helium 1750 |
| Area, cm² | 1,750 |
| Area basis | unknown |
| Span, mm | 980 |
| Chord, mm | 218 |
| Aspect ratio | 5.50 |
| Band | Low aspect |
| Brand’s category | Entry |
| Disciplines | prone, sup, wing, downwind |
| Construction | carbon composite with helium foam core |
| Model year | 2022-2025 |
| Source | manufacturer · read 2026-09-10 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
