Fast Bobby · wings · Unifoil · discontinued

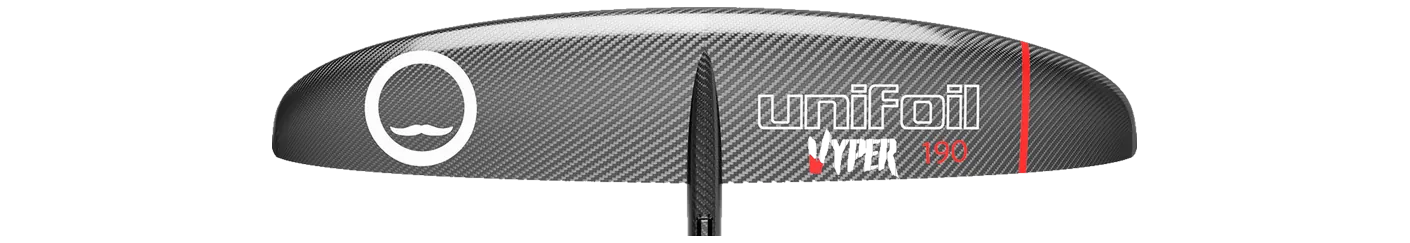

Unifoil Vyper 190

Discontinuedsuperseded or no longer in the brand’s current range
1,226area, cm²
865span, mm
6.10aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family Vyper (discontinued) Chord 174 mm Brand’s category Surf / carve Disciplines prone, wing, pump carbon · 2023

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Cabrinha Fusion X-Series MkII X1240, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

2ENSIS PACER Front Wing 1250no outline4North Sonar MA1200v2no outline6F-One PHANTOM Carbon 1280no outlineSpecs · table ↓

Unifoil Vyper 190 · 865 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Cabrinha Fusion X-Series MkII X1240 · 870 mm

The Vyper has run 3 sizes, 968–1,226 cm², including discontinued sizes; aspect ratio moves 5.8–6.1 across the range.

Its 865 mm span is 15% narrower than typical for the area — the median across the 105 current wings within 10% of its size is 1,020 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Unifoil Vyper 190, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Cabrinha	Fusion X-Series MkII X1240	1,240	+1.1%	6.10	+0.0%	870	Mid-low aspect
ENSIS	PACER Front Wing 1250	1,250	+2.0%	6.00	-1.6%	864	Low aspect
RRD	Blaze LTE Front Wing Y30 1250	1,250	+2.0%	6.00	-1.6%	865	Low aspect
North	Sonar MA1200v2	1,200	-2.1%	6.40	+4.9%	875	Mid-low aspect
Armstrong	S1 (Step 1) 1250	1,250	+2.0%	5.70	-6.6%	848	Low aspect
F-One	PHANTOM Carbon 1280	1,280	+4.4%	5.90	-3.3%	870	Low aspect

Specifications

Every figure is Unifoil's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Vyper (discontinued)
Size	Vyper 190
Area, cm²	1,226
Area basis	unknown
Span, mm	865
Chord, mm	174
Aspect ratio	6.10
Band	Mid-low aspect
Brand’s category	Surf / carve
Disciplines	prone, wing, pump
Construction	carbon
Model year	2023
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
