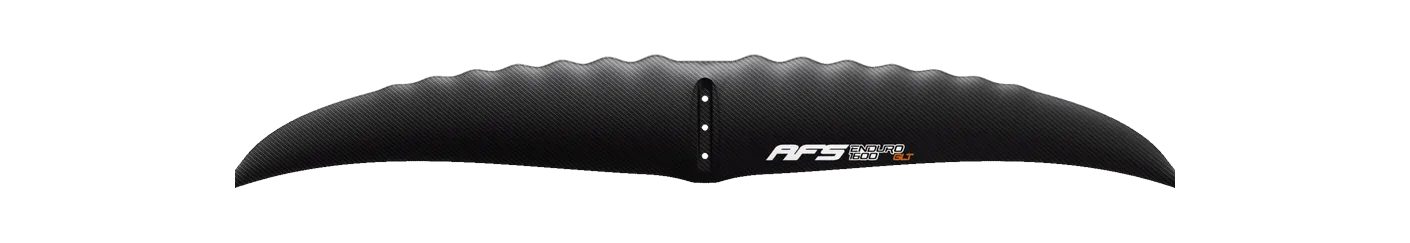

AFS Enduro Front Wing Enduro 800 hydrofoil front wing: 800 cm², 940 mm span, aspect ratio 11.00, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from AFS's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Flow 800 | 800 | +0.0% | 11.00 | +0.0% | 937 | C4 High aspect |
| Takoon | Flow Front Wing 800 | 800 | +0.0% | 10.70 | -2.7% | 920 | C4 High aspect |
| KT Foiling | Atlas 790 Atlas 790 | 790 | -1.2% | 10.70 | -2.7% | 920 | C4 High aspect |
| RRD | Dynamic Pro Flying Fish Front Wing Y31 830 | 830 | +3.8% | 10.65 | -3.2% | 940 | C4 High aspect |
| Levitaz | Front Wing FS 790 FS 790 | 790 | -1.2% | 10.30 | -6.4% | 900 | C4 High aspect |
| Lift Foils | 120 High Aspect Front Wing 120 | 775 | -3.1% | 10.20 | -7.3% | 889 | C4 High aspect |
| Lift Foils | 120 Vario Front Wing 120 | 774 | -3.2% | 10.20 | -7.3% | 889 | C4 High aspect |
| Lift Foils | Florence 130 X Front Wing 130 | 839 | +4.9% | 11.70 | +6.4% | 991 | C5 Very high aspect |
| Family | ENDURO |
|---|---|
| Size | Enduro 800 |
| Area, cm² | 800 |
| Area basis | unknown |
| Span, mm | 940 |
| Chord, mm | 116 |
| Aspect ratio | 11.00 |
| Band | C4 High aspect |
| Brand files it under | Downwind |
| Disciplines | downwind, wing, parawing, pump, sup |
| Construction | HR Carbon / Corecell |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See AFS on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
