Lift Foils 120 High Aspect Front Wing

Lift Foils 120 High Aspect Front Wing

Family High Aspect Brand’s category Glide / high aspect Disciplines prone, efoil, wake, downwind HM carbon (Toray M3) · 2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis ART v2 879, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

8North Sonar HA750no outline11Unifoil Progression 125no outline12F-One EAGLE HM Carbon 790no outline16AFS Enduro Front Wing 800no outlineSpecs · table ↓

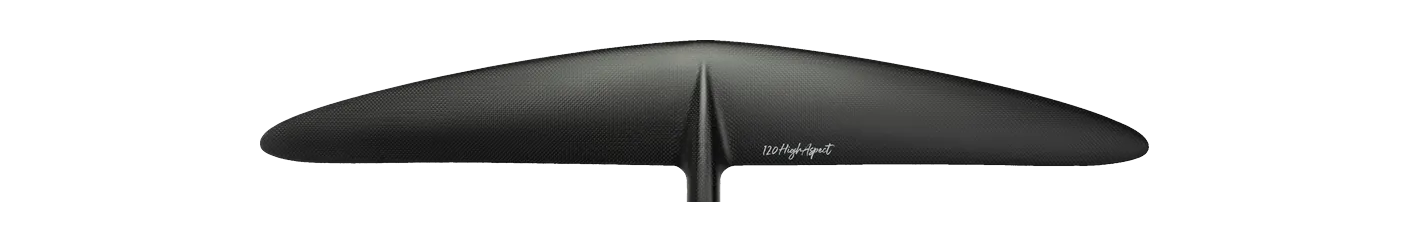

Lift Foils 120 High Aspect Front Wing · 889 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Axis ART v2 879 · 880 mm

The High Aspect runs 3 sizes, 452–775 cm²; aspect ratio moves 10.2–12.1 across the range.

Its 889 mm span is 6% wider than typical for the area — the median across the 136 current wings within 10% of its size is 842 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Lift Foils 120 High Aspect Front Wing, closest first.
BrandWingArea cm²Δ areaAspect ratioΔ ARSpan mmBand
AxisART v2 879790+1.9%9.98-2.2%880High aspect
LevitazFront Wing FS 790790+1.9%10.30+1.0%900High aspect
ArmstrongHA (High Aspect) HA780780+0.6%9.86-3.3%877High aspect
KT FoilingAtlas 790790+1.9%10.70+4.9%920High aspect
TakoonFlash Front Wing 770770-0.6%9.70-4.9%864High aspect
CabrinhaFusion H-Series MkII H800800+3.2%9.90-2.9%900High aspect
DuotoneGlide 2.0 D/LAB 750750-3.2%10.30+1.0%880High aspect
NorthSonar HA750750-3.2%10.10-1.0%870High aspect
TakoonFlow Front Wing 800800+3.2%10.70+4.9%920High aspect
NaishExcalibur HA Front Wing 744744-4.0%10.20+0.0%870High aspect
UnifoilProgression 125806+4.0%10.00-2.0%898High aspect
F-OneEAGLE HM Carbon 790790+1.9%9.50-6.9%865Mid aspect
RRDFlying Fish Front Wing Y30 750750-3.2%9.50-6.9%840Mid aspect
GONGVeloce Free Fly (FF) V3 Atmo S740-4.5%10.60+3.9%880High aspect
GONGVeloce V3 Atmo S740-4.5%10.10-1.0%870High aspect
AFSEnduro Front Wing 800800+3.2%11.00+7.8%940High aspect
SlingshotOne-Lock Flow 800800+3.2%11.00+7.8%937High aspect

Specifications

Every figure is Lift Foils's own, read from the source linked in the last row, converted to area in cm² and span in mm.
FamilyHigh Aspect
Size120
Area, cm²775
Area basisunknown
Span, mm889
Chord, mm—
Aspect ratio10.20
BandHigh aspect
Brand’s categoryGlide / high aspect
Disciplinesprone, efoil, wake, downwind
ConstructionHM carbon (Toray M3)
Model year2026
Sourcemanufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
