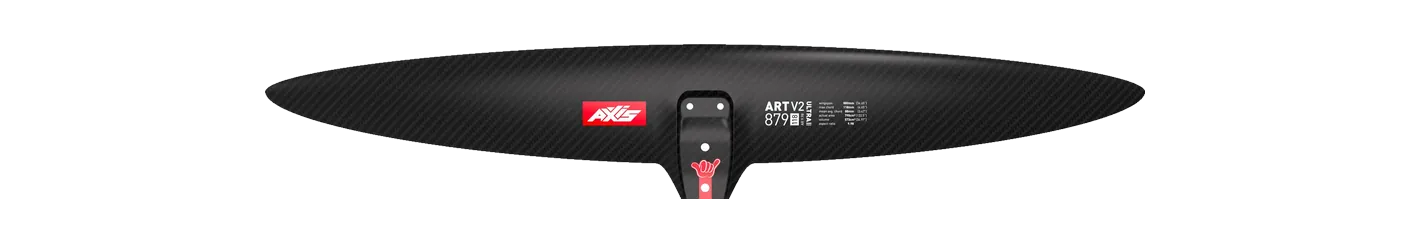

Axis ART v2 ART v2 879 hydrofoil front wing: 790 cm², 880 mm span, aspect ratio 9.98, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Cabrinha | Fusion H-Series MkII H800 | 800 | +1.3% | 9.90 | -0.8% | 900 | C4 High aspect |
| Unifoil | Progression 125 Progression 125 | 806 | +2.0% | 10.00 | +0.2% | 898 | C4 High aspect |
| Armstrong | HA (High Aspect) HA780 | 780 | -1.3% | 9.86 | -1.2% | 877 | C4 High aspect |
| Levitaz | Front Wing FS 790 FS 790 | 790 | +0.0% | 10.30 | +3.2% | 900 | C4 High aspect |
| Lift Foils | 120 High Aspect Front Wing 120 | 775 | -1.9% | 10.20 | +2.2% | 889 | C4 High aspect |
| Lift Foils | 120 Vario Front Wing 120 | 774 | -2.0% | 10.20 | +2.2% | 889 | C4 High aspect |
| F-One | EAGLE HM Carbon EAGLE 790 | 790 | +0.0% | 9.50 | -4.8% | 865 | C3 Mid aspect |
| Takoon | Flash Front Wing 770 | 770 | -2.5% | 9.70 | -2.8% | 864 | C4 High aspect |
| KT Foiling | Atlas 790 Atlas 790 | 790 | +0.0% | 10.70 | +7.2% | 920 | C4 High aspect |
| Takoon | Flow Front Wing 800 | 800 | +1.3% | 10.70 | +7.2% | 920 | C4 High aspect |
| Sabfoil | Blackbird Razor 847 Blackbird Razor 847 | 784 | -0.8% | 9.20 | -7.8% | 847 | C3 Mid aspect |
| Family | ART v2 |
|---|---|
| Size | ART v2 879 |
| Area, cm² | 790 |
| Area basis | flat |
| Span, mm | 880 |
| Chord, mm | 118 |
| Aspect ratio | 9.98 |
| Band | C4 High aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | wing, prone, downwind, sup |
| Construction | UHM carbon reinforced |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
