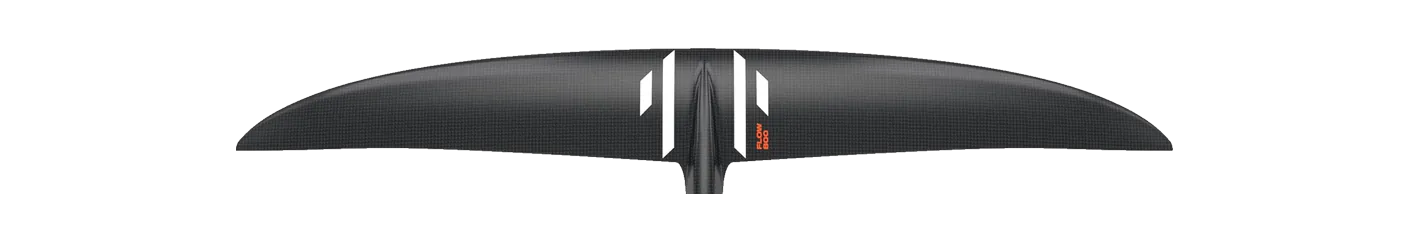

Slingshot One-Lock Flow 800
- 800area, cm²
- 937span, mm
- 11.00aspect ratio
- Highaspect · AR 9.5 – 11.5
Family One-Lock Flow Brand’s category Glide / high aspect Disciplines prone, downwind, wake, wing carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the KT Foiling Atlas 790 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The One-Lock Flow runs 4 sizes, 600–1,200 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 937 mm span is 10% wider than typical for the area — the median across the 123 current wings within 10% of its size is 850 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Enduro Front Wing 800 | 800 | +0.0% | 11.00 | +0.0% | 940 | High aspect |
| KT Foiling | Atlas 790 | 790 | -1.2% | 10.70 | -2.7% | 920 | High aspect |
| Takoon | Flow Front Wing 800 | 800 | +0.0% | 10.70 | -2.7% | 920 | High aspect |
| RRD | Dynamic Pro Flying Fish Front Wing Y31 830 | 830 | +3.8% | 10.65 | -3.2% | 940 | High aspect |
| Levitaz | Front Wing FS 790 | 790 | -1.2% | 10.30 | -6.4% | 900 | High aspect |
| Lift Foils | 120 High Aspect Front Wing | 775 | -3.1% | 10.20 | -7.3% | 889 | High aspect |
| Lift Foils | 120 Vario Front Wing | 774 | -3.2% | 10.20 | -7.3% | 889 | High aspect |
| Lift Foils | Florence 130 X Front Wing | 839 | +4.9% | 11.70 | +6.4% | 991 | Very high aspect |
Specifications
| Family | One-Lock Flow |
|---|---|
| Size | 800 |
| Area, cm² | 800 |
| Area basis | unknown |
| Span, mm | 937 |
| Chord, mm | — |
| Aspect ratio | 11.00 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | prone, downwind, wake, wing |
| Construction | carbon |
| Model year | 2026 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
