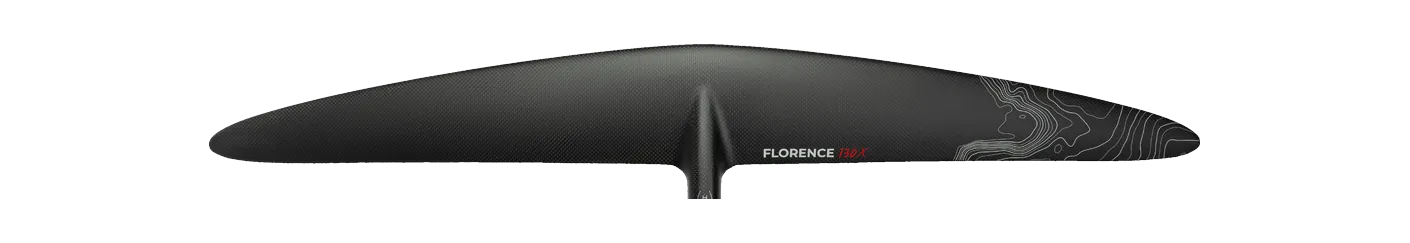

Lift Foils Florence 130 X Front Wing

839area, cm²
991span, mm
11.70aspect ratio
Very highaspect · AR 11.5 – 15.0

Family Florence X Brand’s category Downwind Disciplines downwind, prone, efoil, wing HM carbon (Toray M3) · 2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Hyper Trail V3 Atmo M, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

3AFS Enduro Front Wing 800no outlineSpecs · table ↓

Lift Foils Florence 130 X Front Wing · 991 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ GONG Hyper Trail V3 Atmo M · 980 mm

The Florence X runs 4 sizes, 458–839 cm², and changes proportion as it grows: aspect ratio runs 11.7 at one end of the range to 20.3 at the other, so its sizes differ in shape as well as in area.

Its 991 mm span is 11% wider than typical for the area — the median across the 119 current wings within 10% of its size is 889 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Lift Foils Florence 130 X Front Wing, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
GONG	Hyper Trail V3 Atmo M	850	+1.3%	11.40	-2.6%	980	High aspect
Axis	ART PRO 1001	845	+0.7%	12.06	+3.1%	1,001	Very high aspect
AFS	Enduro Front Wing 800	800	-4.6%	11.00	-6.0%	940	High aspect
F-One	EAGLE X UHM Carbon 800	800	-4.6%	12.00	+2.6%	980	Very high aspect
Slingshot	One-Lock Flow 800	800	-4.6%	11.00	-6.0%	937	High aspect
Armstrong	UHA (Ultra High Aspect) UHA870	870	+3.7%	12.60	+7.7%	1,047	Very high aspect

Specifications

Every figure is Lift Foils's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Florence X
Size	130
Area, cm²	839
Area basis	unknown
Span, mm	991
Chord, mm	—
Aspect ratio	11.70
Band	Very high aspect
Brand’s category	Downwind
Disciplines	downwind, prone, efoil, wing
Construction	HM carbon (Toray M3)
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
