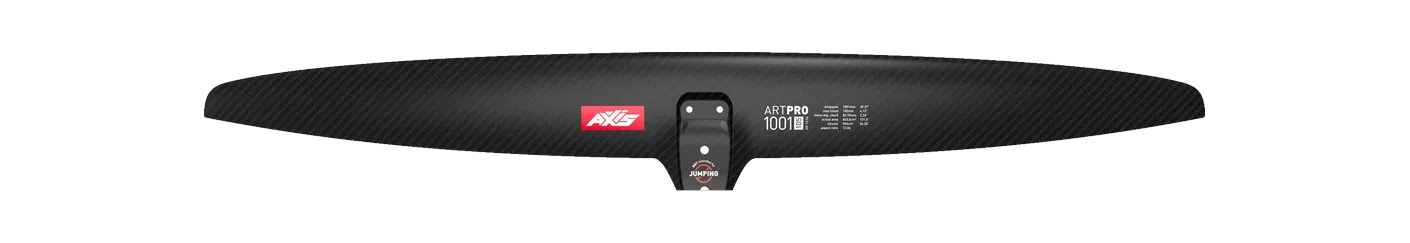

Axis ART PRO ART PRO 1001 hydrofoil front wing: 845 cm², 1,001 mm span, aspect ratio 12.06, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Lift Foils | Florence 130 X Front Wing 130 | 839 | -0.7% | 11.70 | -3.0% | 991 | C5 Very high aspect |
| GONG | Hyper Trail V3 Atmo M | 850 | +0.6% | 11.40 | -5.5% | 980 | C4 High aspect |
| Armstrong | UHA (Ultra High Aspect) UHA870 | 870 | +3.0% | 12.60 | +4.5% | 1,047 | C5 Very high aspect |
| Code Foils | R Series Front Wing 860R | 860 | +1.8% | 13.00 | +7.8% | 1,050 | C5 Very high aspect |
| Family | ART PRO |
|---|---|
| Size | ART PRO 1001 |
| Area, cm² | 845 |
| Area basis | flat |
| Span, mm | 1,001 |
| Chord, mm | 105 |
| Aspect ratio | 12.06 |
| Band | C5 Very high aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | — |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
