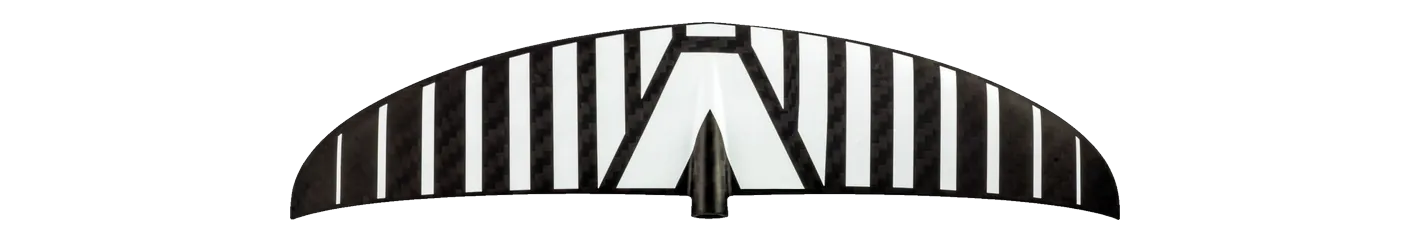

Armstrong HS (High Speed) HS1250
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,250area, cm²
- 830span, mm
- 5.51aspect ratio
- Lowaspect · AR ≤ 6.0
Family HS Brand’s category All-round / freeride Disciplines prone, sup, wing carbon · 2020-2023
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Ultra Jet Front Wing 1250, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The HS has run 6 sizes, 626–1,850 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 4.8 at one end of the range to 5.8 at the other, so its sizes differ in shape as well as in area.
Its 830 mm span is 20% narrower than typical for the area — the median across the 110 current wings within 10% of its size is 1,032 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Ultra Jet Front Wing 1250 | 1,250 | +0.0% | 5.60 | +1.6% | 835 | Low aspect |
| Slingshot | One-Lock Ease 1250 | 1,250 | +0.0% | 5.30 | -3.8% | 817 | Low aspect |
| Lift Foils | 200 Surf V2 Front Wing | 1,290 | +3.2% | 5.40 | -2.0% | 826 | Low aspect |
| Takuma | Kujira Helium Front Wing 1200 | 1,200 | -4.0% | 5.50 | -0.2% | 815 | Low aspect |
| F-One | PHANTOM Carbon 1280 | 1,280 | +2.4% | 5.90 | +7.1% | 870 | Low aspect |
| Axis | SP (Surf Performance) 760 | 1,218 | -2.6% | 5.11 | -7.3% | 760 | Low aspect |
Specifications
| Family | HS |
|---|---|
| Size | HS1250 |
| Area, cm² | 1,250 |
| Area basis | unknown |
| Span, mm | 830 |
| Chord, mm | — |
| Aspect ratio | 5.51 |
| Band | Low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | prone, sup, wing |
| Construction | carbon |
| Model year | 2020-2023 |
| Source | retailer |
The brand publishes no aspect ratio; this one is derived from its published span and area (span² ÷ area).
Data current to August 2026. The figures above are read from a retailer's listing rather than Armstrong's own pages, converted to comparable units.
