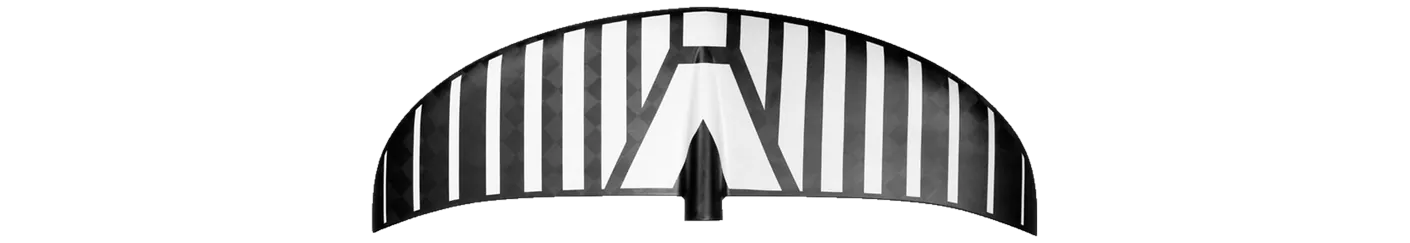

Armstrong HS (High Speed) HS1550: a legacy wing, no longer in Armstrong's current range. 1,550 cm², 938 mm span, aspect ratio 5.68. The current wings that match it within ±5% area and ±8% aspect ratio, from Armstrong's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar MA1500v2 MA1500v2 | 1,500 | -3.2% | 5.60 | -1.4% | 920 | C1 Low aspect |
| ENSIS | PACER Front Wing 1550 | 1,550 | +0.0% | 6.00 | +5.6% | 964 | C1 Low aspect |
| RRD | Blaze LTE Front Wing Y30 1550 | 1,550 | +0.0% | 6.00 | +5.6% | 975 | C1 Low aspect |
| Takuma | Kujira Helium Front Wing Kujira Helium 1500 | 1,500 | -3.2% | 5.52 | -2.8% | 910 | C1 Low aspect |
| Takoon | Starter Front Wing 1600 | 1,600 | +3.2% | 5.50 | -3.2% | 940 | C1 Low aspect |
| Duotone | Free 1500 | 1,500 | -3.2% | 6.00 | +5.6% | 950 | C1 Low aspect |
| Family | HS |
|---|---|
| Size | HS1550 |
| Area, cm² | 1,550 |
| Area basis | unknown |
| Span, mm | 938 |
| Chord, mm | — |
| Aspect ratio | 5.68 |
| Band | C1 Low aspect |
| Brand files it under | All-round / freeride |
| Disciplines | prone, sup, wing |
| Construction | carbon |
| Model year | 2020-2023 |
| Source | retailer |
The brand publishes no aspect ratio; this one is derived from its published span and area (span² ÷ area).
See Armstrong on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
