RRD Blaze LTE Front Wing Y30 1550

1,550area, cm²
975span, mm
6.00aspect ratio
Lowaspect · AR ≤ 6.0

Family BLAZE LTE Chord 200 mm Brand’s category All-round / freeride Disciplines wing, prone Hybrid Carbon

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Axis BSC (Broad Spectrum Carve) 970 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1ENSIS PACER Front Wing 1550no outline5North Sonar MA1500v2no outline6F-One PHANTOM Carbon 1480no outlineSpecs · table ↓

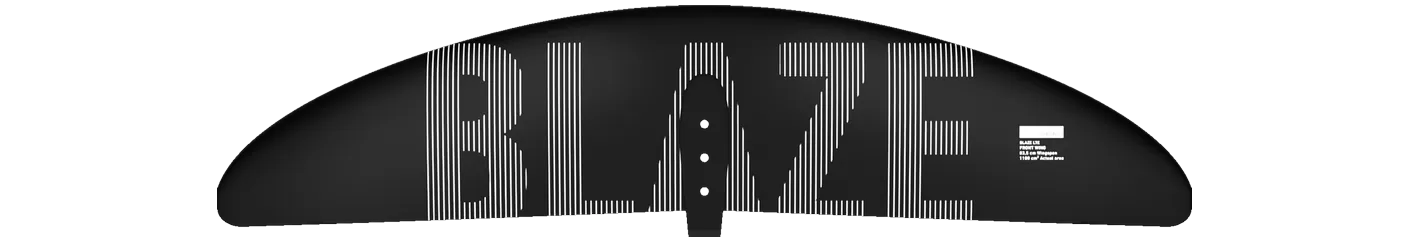

RRD Blaze LTE Front Wing Y30 1550 · 975 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Axis BSC (Broad Spectrum Carve) 970 · 970 mm

The Blaze LTE Front Wing Y30 runs 6 sizes, 850–1,850 cm²; aspect ratio moves 6.0–6.5 across the range.

Its 975 mm span is 14% narrower than typical for the area — the median across the 75 current wings within 10% of its size is 1,130 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the RRD Blaze LTE Front Wing Y30 1550, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
ENSIS	PACER Front Wing 1550	1,550	+0.0%	6.00	+0.0%	964	Low aspect
Axis	BSC (Broad Spectrum Carve) 970	1,572	+1.4%	6.27	+4.5%	970	Mid-low aspect
AFS	Flyer Front Wing 1500	1,500	-3.2%	6.30	+5.0%	955	Mid-low aspect
Duotone	Free 1500	1,500	-3.2%	6.00	+0.0%	950	Low aspect
North	Sonar MA1500v2	1,500	-3.2%	5.60	-6.7%	920	Low aspect
F-One	PHANTOM Carbon 1480	1,480	-4.5%	6.20	+3.3%	960	Mid-low aspect

Specifications

Every figure is RRD's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	BLAZE LTE
Size	1550
Area, cm²	1,550
Area basis	unknown
Span, mm	975
Chord, mm	200
Aspect ratio	6.00
Band	Low aspect
Brand’s category	All-round / freeride
Disciplines	wing, prone
Construction	Hybrid Carbon
Model year	—
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
